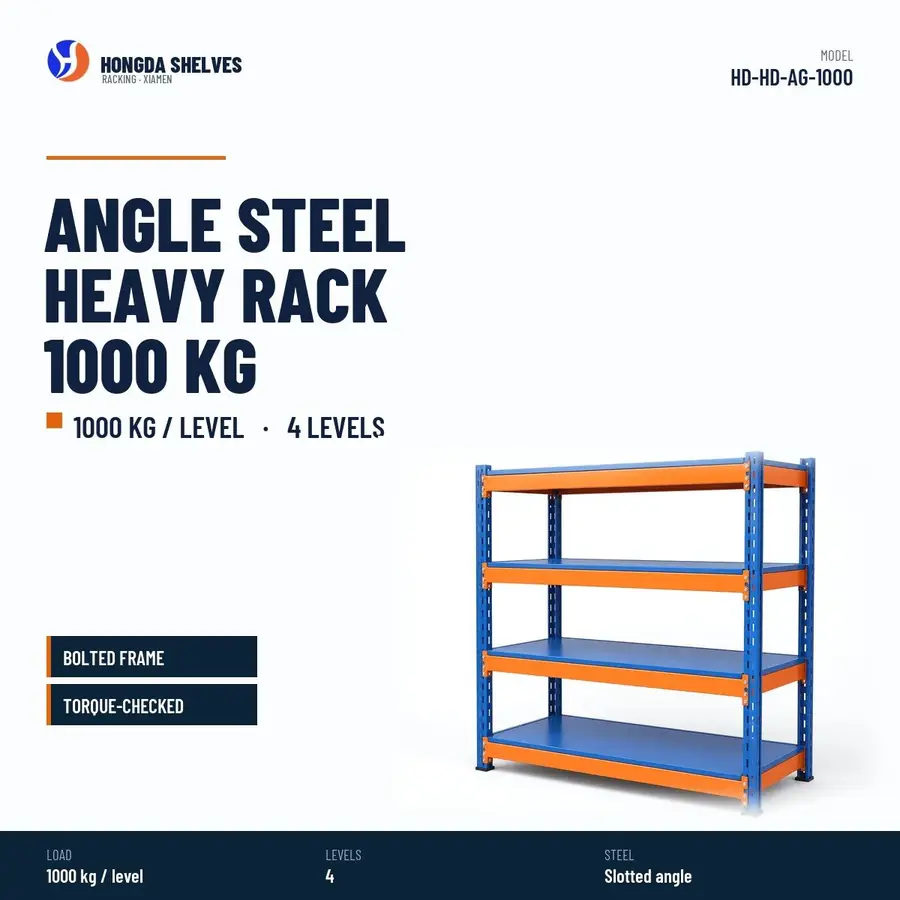

FIG. 01 — Model sheet, HD-HD-AG-1000
Technical drawing and packing list are issued with the quotation. Ratings shown are typical for this range — the approved drawing states the rating for your unit load.
Angle Steel Heavy Rack, 1000 kg per Level

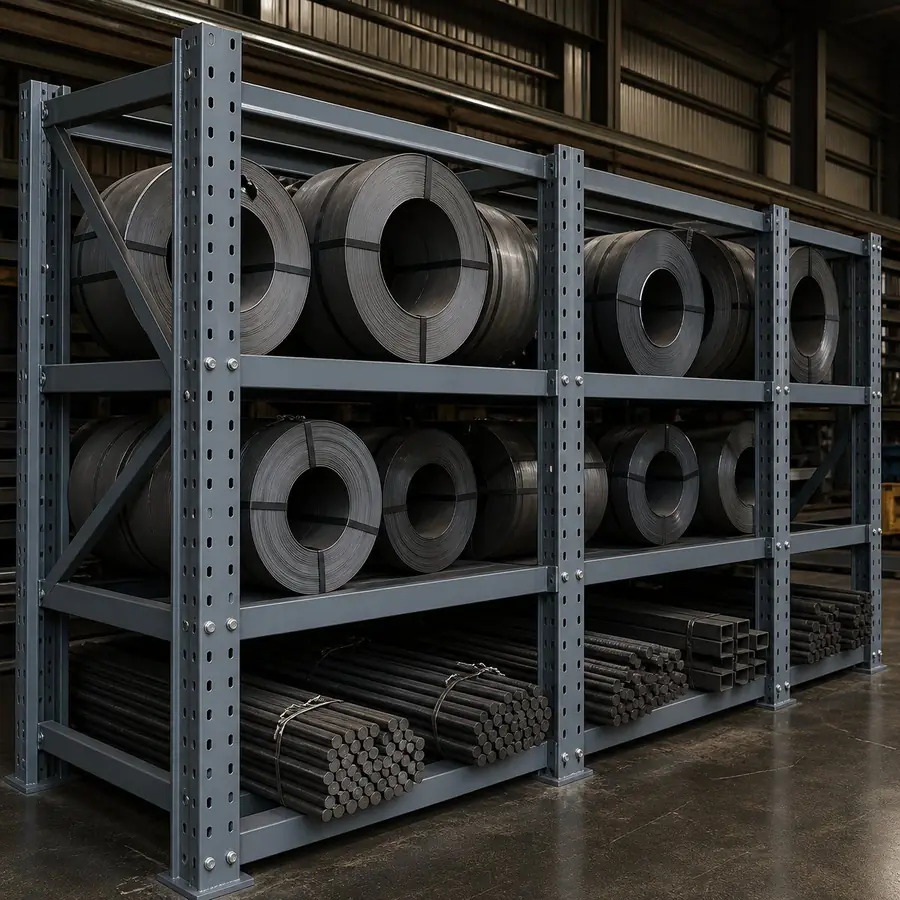

Bolted angle steel heavy racking rated 1000 kg per level, for loads that would deform a light frame: coil, bar stock and heavy maintenance spares. Bolted connections are torque-checked before dispatch, and the angle posts resist side impact in busy aisles. Four levels come on a frame built to drawing where the footprint is not standard. Supplied with a touch-up kit and assembly instructions per shipment.
| Property | Value |
|---|---|
| Model | HD-HD-AG-1000 |
| Load per layer | 1000 kg / level |
| Levels | 4 |
| Steel | Slotted angle steel |
| Finish | Powder coated |
| Colour | Blue frame / orange beams |
| MOQ | 5 pieces |
| Quotation | Per order, on request |
Confirmed per order, not assumed
Cost is built from quantity, coating colour and packing, so no price is published on this page. The quotation states the specification, the packing and the terms that apply to your order.
- 5 pieces minimum
- Full container
- Mixed container
Built to your bay, not to ours
- Dimensions
- Bay width, depth and level spacing set from your drawing or a photo of the space.
- Load rating
- Upright and beam sections selected against the unit load you carry.

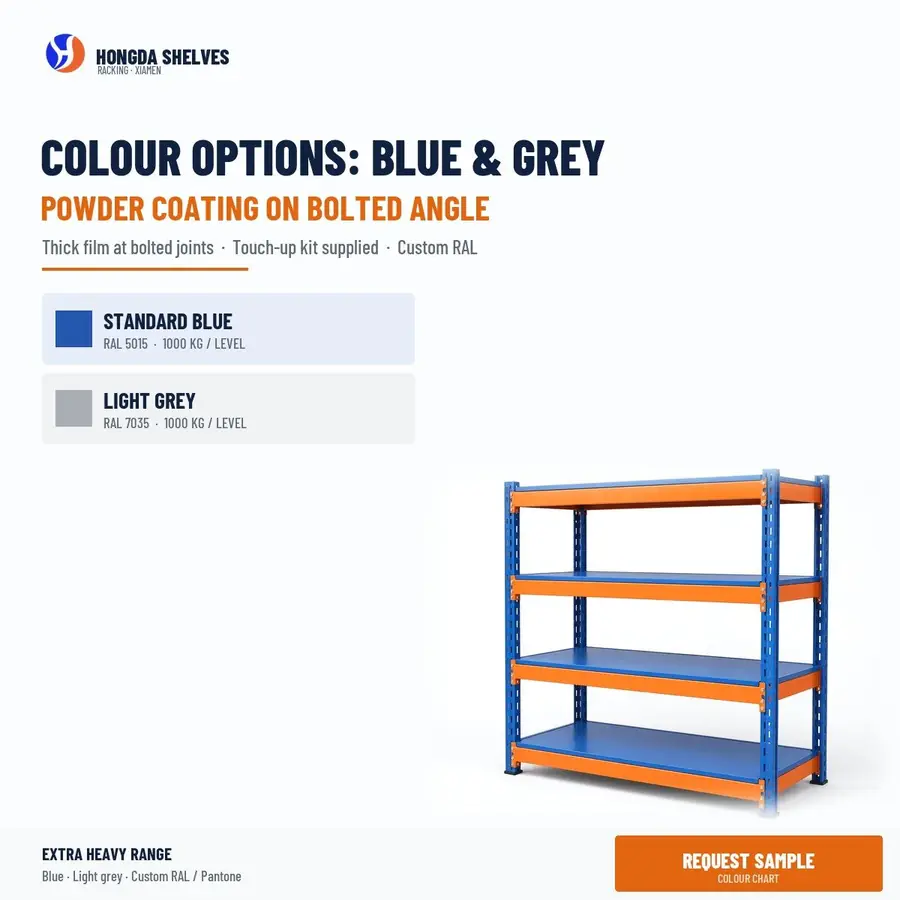

- Colour
- Powder-coat colour matched to a sample or RAL reference.
- Packaging
- Bundled for container loading, or palletised for local distribution.
- Documents
- Drawing, packing list and spec sheet issued with the quotation — none are downloadable before an order.
- Bolted connections, torque-checked before dispatch
- Four levels at 1000 kg per level
- Angle posts resist side impact in busy aisles
- Built to drawing for non-standard footprints
