FIG. 01 — Model sheet, HD-HD-5L-800
Technical drawing and packing list are issued with the quotation. Ratings shown are typical for this range — the approved drawing states the rating for your unit load.
Five-Level Heavy Duty Steel Rack, 800 kg

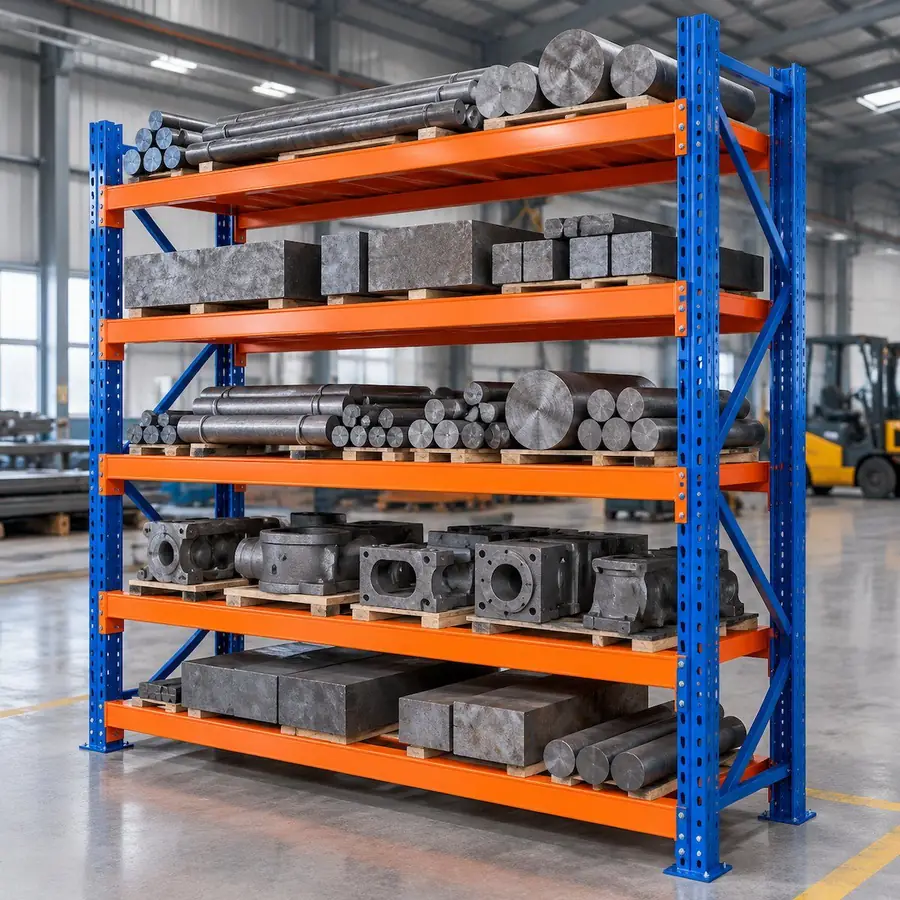

A five-level heavy duty steel rack at 800 kg per layer, specified where a pallet cannot be used but the load is too heavy for standard shelving. The beam profile is reinforced for dense static loads, deck panels are available in steel or board, and anchor plates are supplied as standard. Typical installations are die stores, maintenance spares and semi-finished goods buffer. Built to drawing for non-standard footprints.
| Property | Value |
|---|---|
| Model | HD-HD-5L-800 |
| Load per layer | 800 kg / layer |
| Levels | 5 |
| Steel | Cold-rolled steel |
| Finish | Powder coated |
| Colour | Blue frame / orange beams |
| MOQ | 5 pieces |
| Quotation | Per order, on request |
Confirmed per order, not assumed
Cost is built from quantity, coating colour and packing, so no price is published on this page. The quotation states the specification, the packing and the terms that apply to your order.
- 5 pieces minimum
- Full container
- Mixed container
Built to your bay, not to ours
- Dimensions
- Bay width, depth and level spacing set from your drawing or a photo of the space.
- Load rating
- Upright and beam sections selected against the unit load you carry.
- Colour
- Powder-coat colour matched to a sample or RAL reference.
- Packaging
- Bundled for container loading, or palletised for local distribution.
- Documents
- Drawing, packing list and spec sheet issued with the quotation — none are downloadable before an order.
- Reinforced beam profile at 800 kg per level
- Five levels within a single bay
- Deck panels available in steel or board
- Anchor plates supplied as standard
