FIG. 01 — Model sheet, HD-HD-4L-500
Technical drawing and packing list are issued with the quotation. Ratings shown are typical for this range — the approved drawing states the rating for your unit load.
Heavy Duty Boltless Rack, 4 Levels, 500 kg

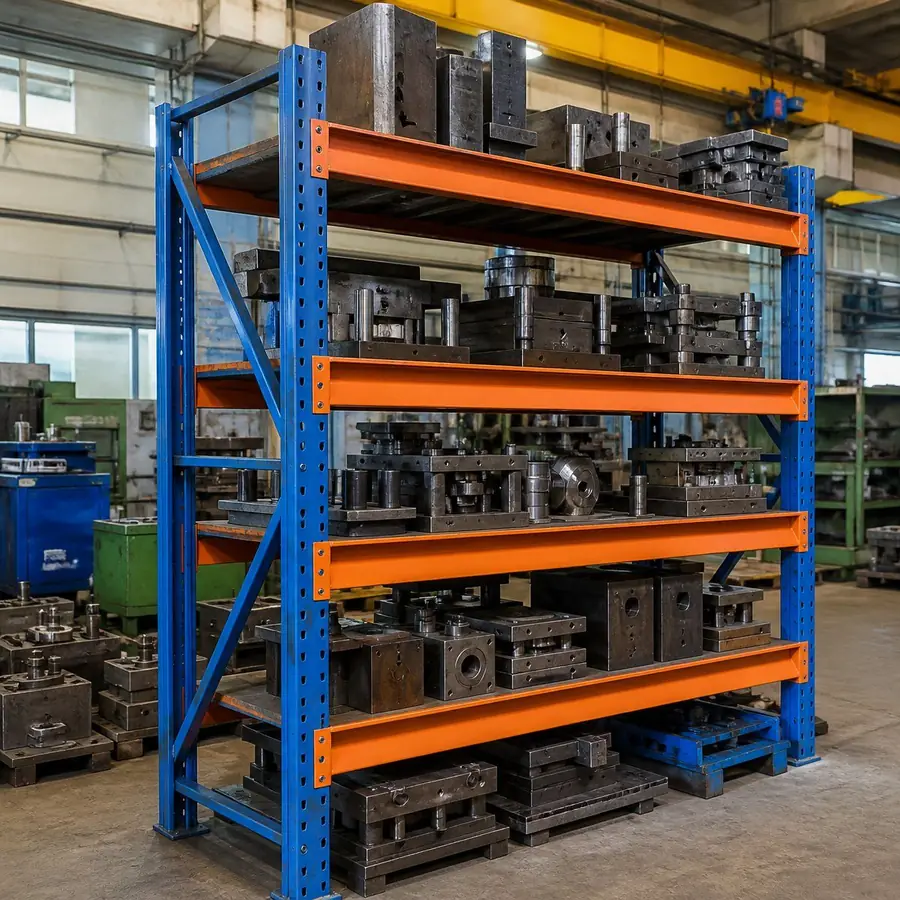

Heavy duty boltless racking with box-section uprights and steel shelf panels, rated 500 kg per layer across four levels. It takes dies, tooling and dense components loaded by hoist or by two people, where medium duty shelving would deflect. The frame is braced for a fully loaded bay and the sections resist side impact in a working aisle. Coating is a double-coat epoxy powder at roughly 80 microns.
| Property | Value |
|---|---|
| Model | HD-HD-4L-500 |
| Load per layer | 500 kg / layer |
| Levels | 4 |
| Steel | Cold-rolled steel |
| Finish | Powder coated |
| Colour | Blue frame / orange beams |
| MOQ | 5 pieces |
| Quotation | Per order, on request |
Confirmed per order, not assumed
Cost is built from quantity, coating colour and packing, so no price is published on this page. The quotation states the specification, the packing and the terms that apply to your order.
- 5 pieces minimum
- Full container
- Mixed container
Built to your bay, not to ours
- Dimensions
- Bay width, depth and level spacing set from your drawing or a photo of the space.
- Load rating
- Upright and beam sections selected against the unit load you carry.
- Colour
- Powder-coat colour matched to a sample or RAL reference.
- Packaging
- Bundled for container loading, or palletised for local distribution.
- Documents
- Drawing, packing list and spec sheet issued with the quotation — none are downloadable before an order.
- Box-section uprights for side impact
- Steel shelf panels instead of board
- Four levels rated for hand-loaded tooling
- Boltless, but braced for a loaded bay
