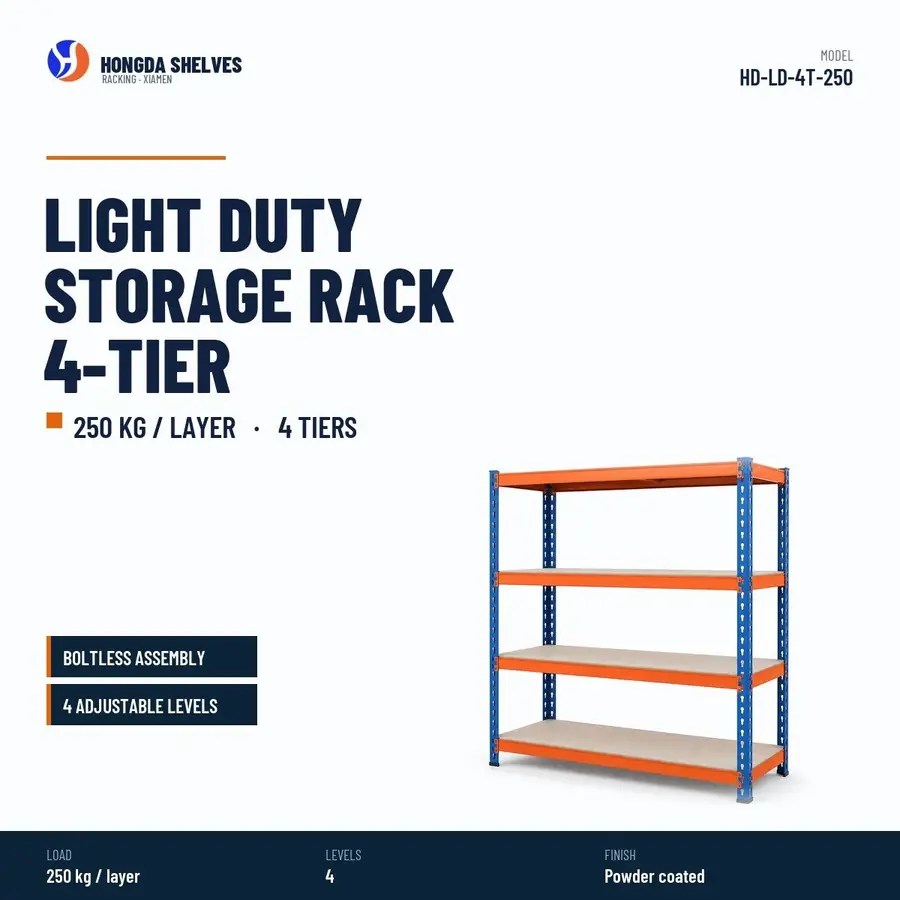

FIG. 01 — Model sheet, HD-LD-4T-250
Technical drawing and packing list are issued with the quotation. Ratings shown are typical for this range — the approved drawing states the rating for your unit load.
Adjustable Light Duty Steel Storage Rack, 4-Tier

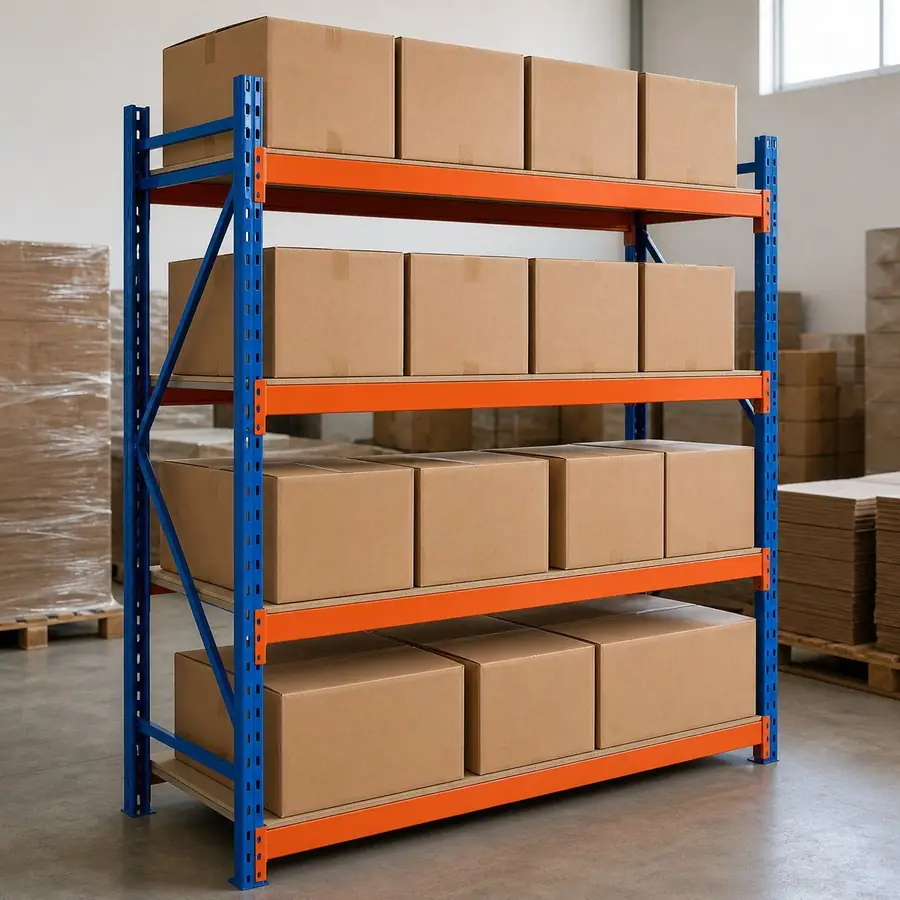

A four-tier boltless storage rack for warehouse and backroom picking. Each layer carries 250 kg on cold-rolled steel beams, and the slotted uprights let a shelf move without tools. The powder-coated frame suits humid stockrooms, and the unit ships flat-packed for container loading. Typical loads are cartons, archive boxes and hand-loaded stock. Bay width, depth and level heights are set from the approved drawing before production.
| Property | Value |
|---|---|
| Model | HD-LD-4T-250 |
| Load per layer | 250 kg / layer |
| Levels | 4 |
| Steel | Cold-rolled steel |
| Finish | Powder coated |
| Colour | Blue frame / orange beams |
| MOQ | 10 pieces |
| Quotation | Per order, on request |
Confirmed per order, not assumed
Cost is built from quantity, coating colour and packing, so no price is published on this page. The quotation states the specification, the packing and the terms that apply to your order.
- 10 pieces minimum
- Full container
- Mixed container
Built to your bay, not to ours
- Dimensions
- Bay width, depth and level spacing set from your drawing or a photo of the space.
- Load rating
- Upright and beam sections selected against the unit load you carry.
- Colour

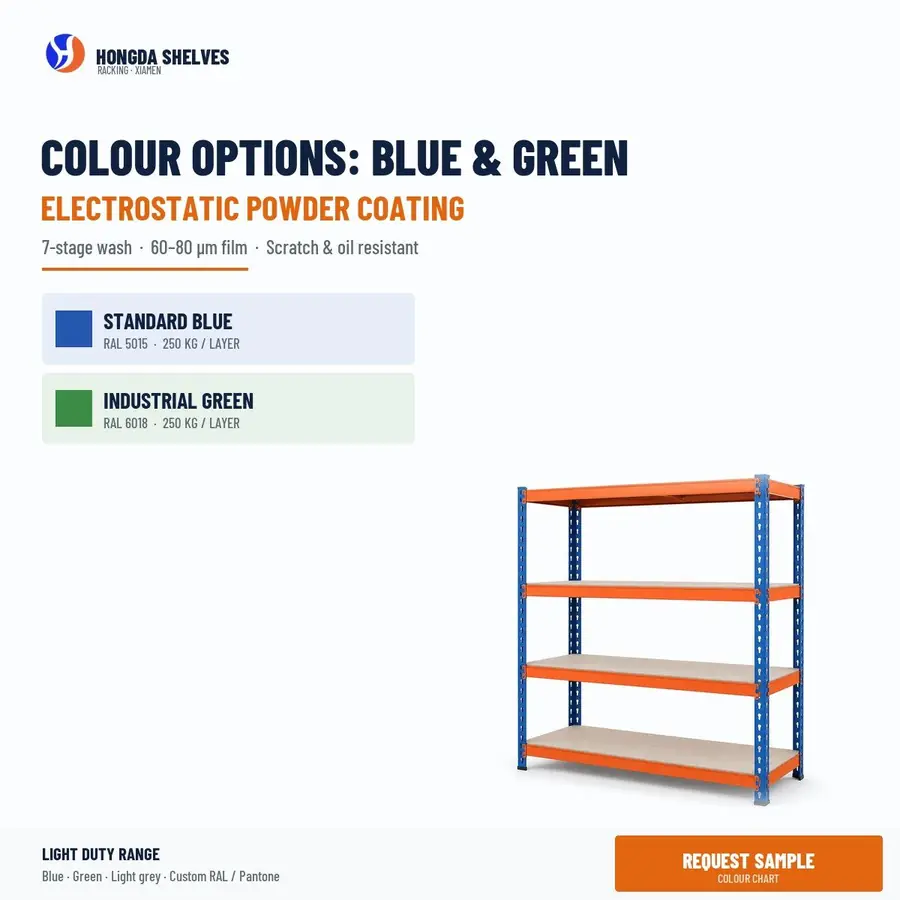

- Powder-coat colour matched to a sample or RAL reference.
- Packaging
- Bundled for container loading, or palletised for local distribution.
- Documents
- Drawing, packing list and spec sheet issued with the quotation — none are downloadable before an order.
- Boltless assembly, no tools required on site
- Four layers with height adjustment on the upright
- Powder-coated finish for humid storage rooms
- Flat-packed for container loading
