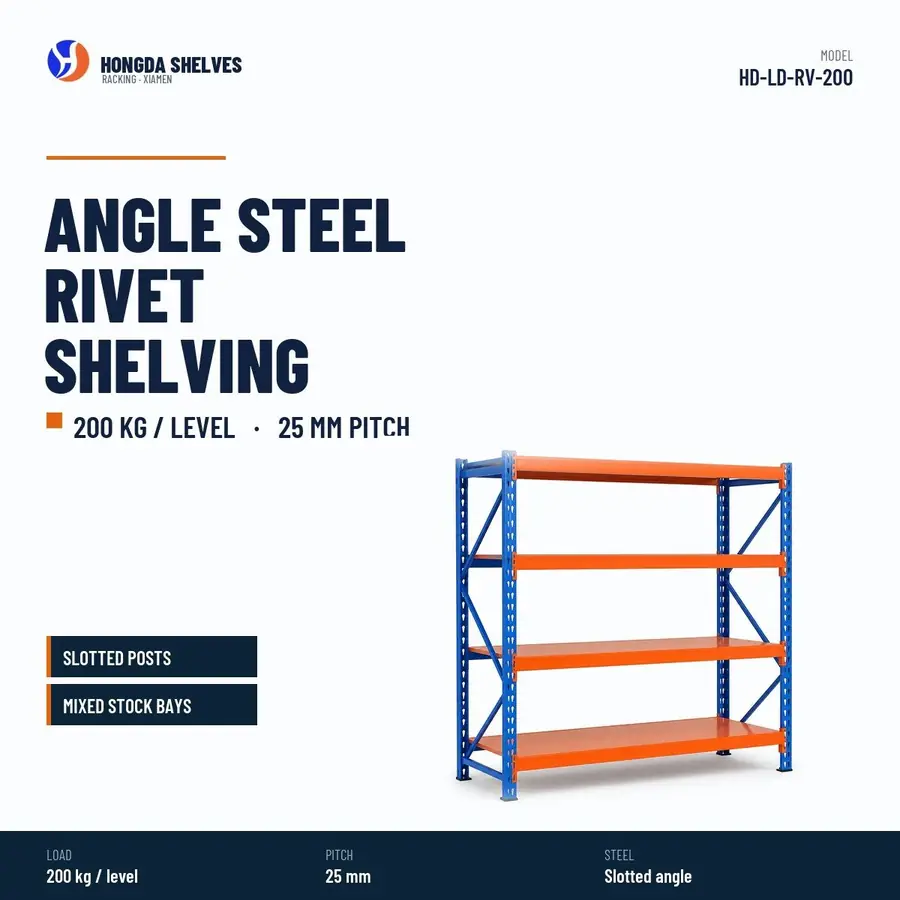

FIG. 01 — Model sheet, HD-LD-RV-200
Technical drawing and packing list are issued with the quotation. Ratings shown are typical for this range — the approved drawing states the rating for your unit load.
Angle Steel Rivet Shelving, 200 kg per Level

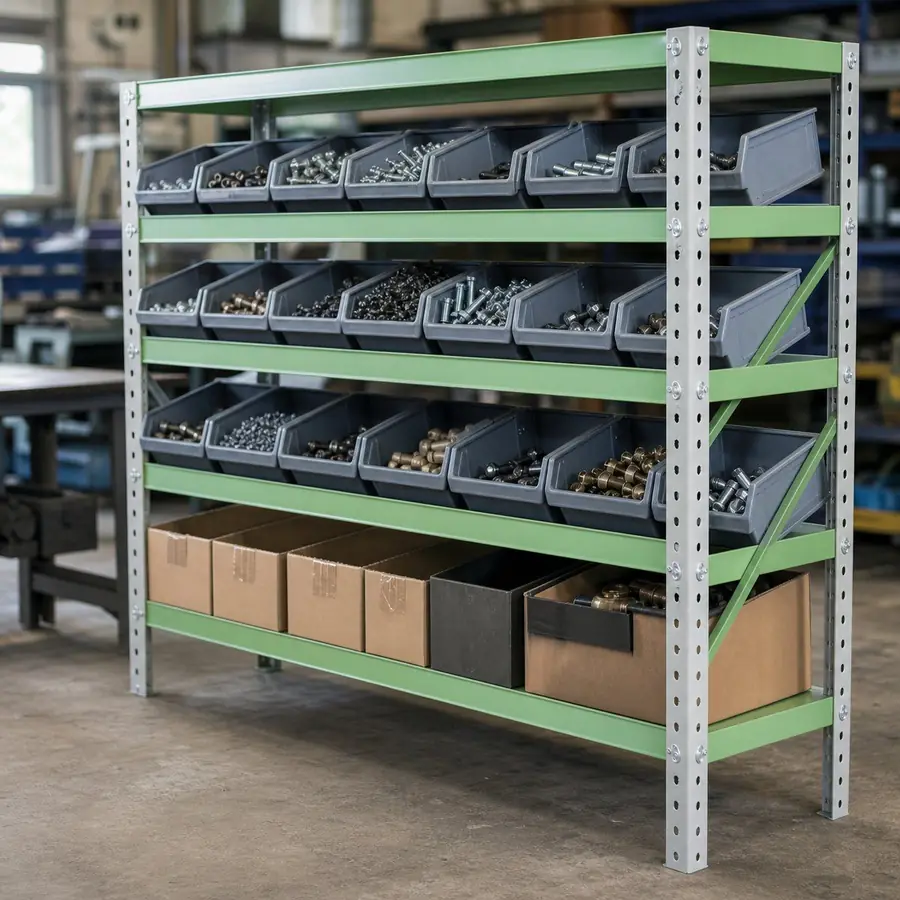

Slotted angle rivet shelving for mixed stock, rated 200 kg per level on a 25 mm pitch. The rivet pattern lets one bay carry shallow bins on one level and deep cartons on the next, and each side sets independently. Bolted frames are serviceable without replacement parts, and the powder coat is applied to every edge to resist chipping in a working store. Custom bay sizes are built to drawing.
| Property | Value |
|---|---|
| Model | HD-LD-RV-200 |
| Load per layer | 200 kg / level |
| Levels | 4 |
| Steel | Slotted angle steel |
| Finish | Powder coated |
| Colour | Blue frame / orange beams |
| MOQ | 10 pieces |
| Quotation | Per order, on request |
Confirmed per order, not assumed
Cost is built from quantity, coating colour and packing, so no price is published on this page. The quotation states the specification, the packing and the terms that apply to your order.
- 10 pieces minimum
- Full container
- Mixed container
Built to your bay, not to ours
- Dimensions
- Bay width, depth and level spacing set from your drawing or a photo of the space.
- Load rating
- Upright and beam sections selected against the unit load you carry.
- Colour
- Powder-coat colour matched to a sample or RAL reference.

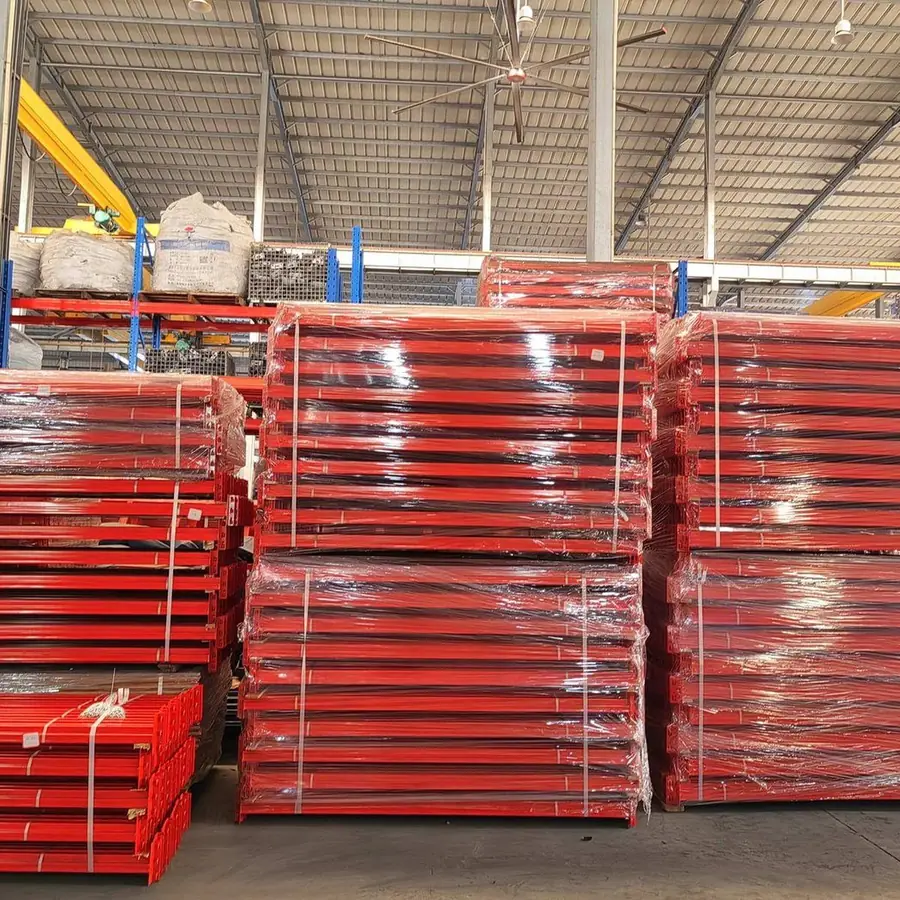

- Packaging
- Bundled for container loading, or palletised for local distribution.
- Documents
- Drawing, packing list and spec sheet issued with the quotation — none are downloadable before an order.
- Slotted angle posts with a 25 mm pitch
- Levels set independently on each side
- Chip-resistant powder coat on all edges
- Bolted frame, serviceable without replacement parts
