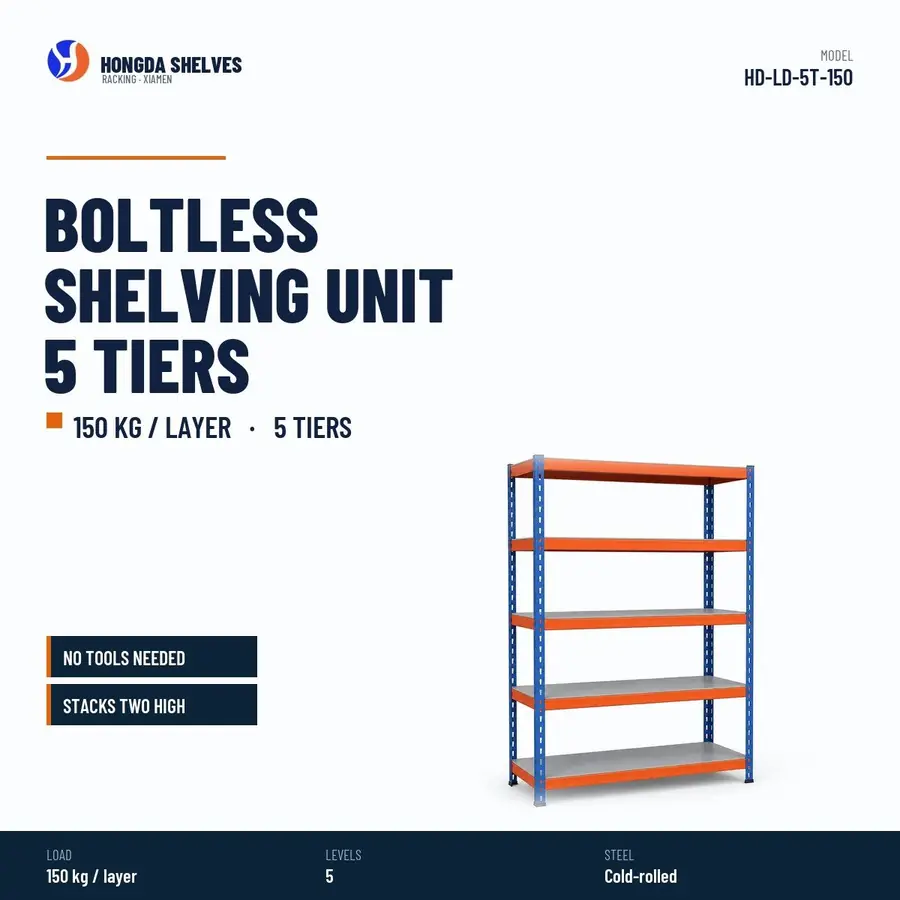

FIG. 01 — Model sheet, HD-LD-5T-150
Technical drawing and packing list are issued with the quotation. Ratings shown are typical for this range — the approved drawing states the rating for your unit load.
Five-Tier Boltless Steel Shelving Unit, 150 kg

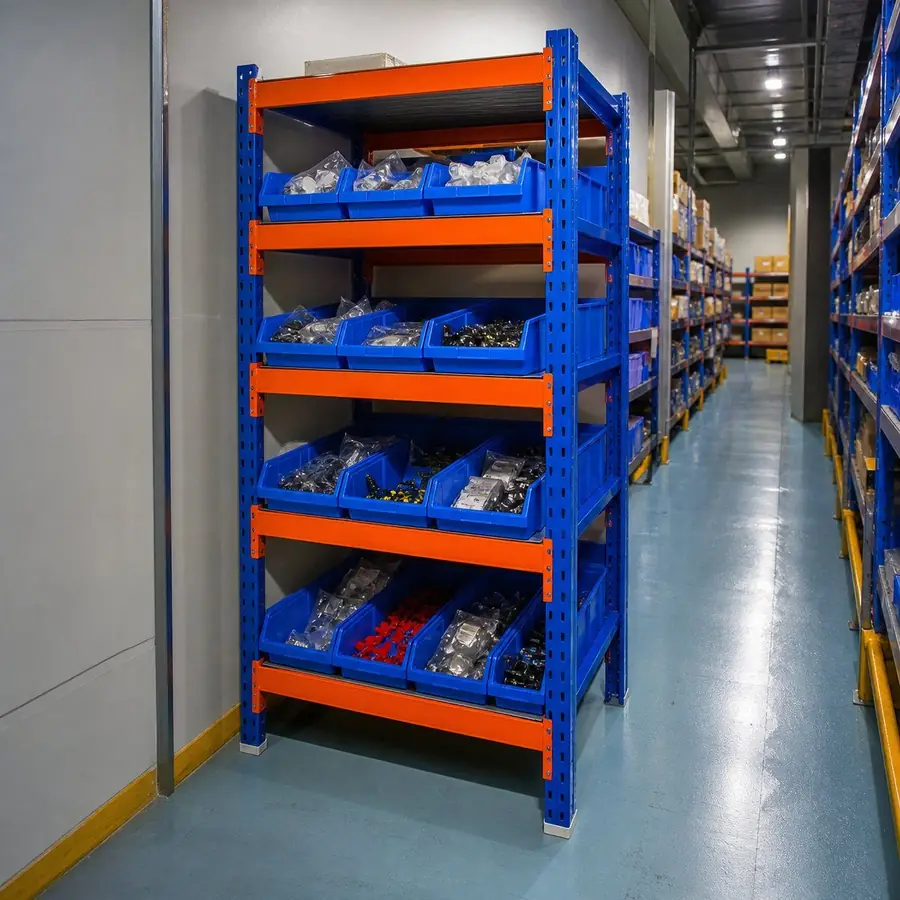

Five levels on the same footprint as a four-tier light duty shelving unit, rated 150 kg per layer. It suits picking areas that hold many small lines rather than a few heavy ones: the steel shelf panels have no loose decking to align, and the slotted upright accepts a shelf move in seconds. Two units stack for a taller run. Supplied flat-packed with fixings, in blue, green, grey or a custom RAL.
| Property | Value |
|---|---|
| Model | HD-LD-5T-150 |
| Load per layer | 150 kg / layer |
| Levels | 5 |
| Steel | Cold-rolled steel |
| Finish | Powder coated |
| Colour | Blue frame / orange beams |
| MOQ | 10 pieces |
| Quotation | Per order, on request |
Confirmed per order, not assumed
Cost is built from quantity, coating colour and packing, so no price is published on this page. The quotation states the specification, the packing and the terms that apply to your order.
- 10 pieces minimum
- Full container
- Mixed container
Built to your bay, not to ours
- Dimensions
- Bay width, depth and level spacing set from your drawing or a photo of the space.
- Load rating
- Upright and beam sections selected against the unit load you carry.

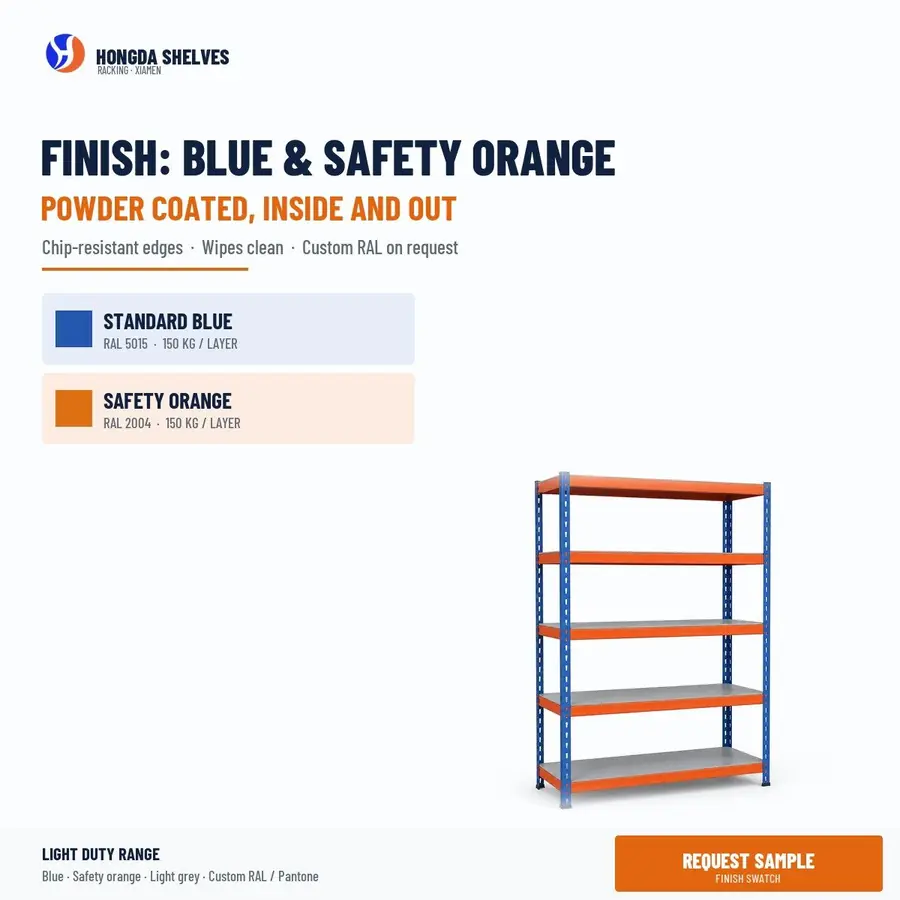

- Colour
- Powder-coat colour matched to a sample or RAL reference.
- Packaging
- Bundled for container loading, or palletised for local distribution.
- Documents
- Drawing, packing list and spec sheet issued with the quotation — none are downloadable before an order.
- Five levels in a single bay footprint
- Steel shelf panels, no loose decking to align
- Slotted upright accepts a shelf move in seconds
- Stacks two high for a taller run
