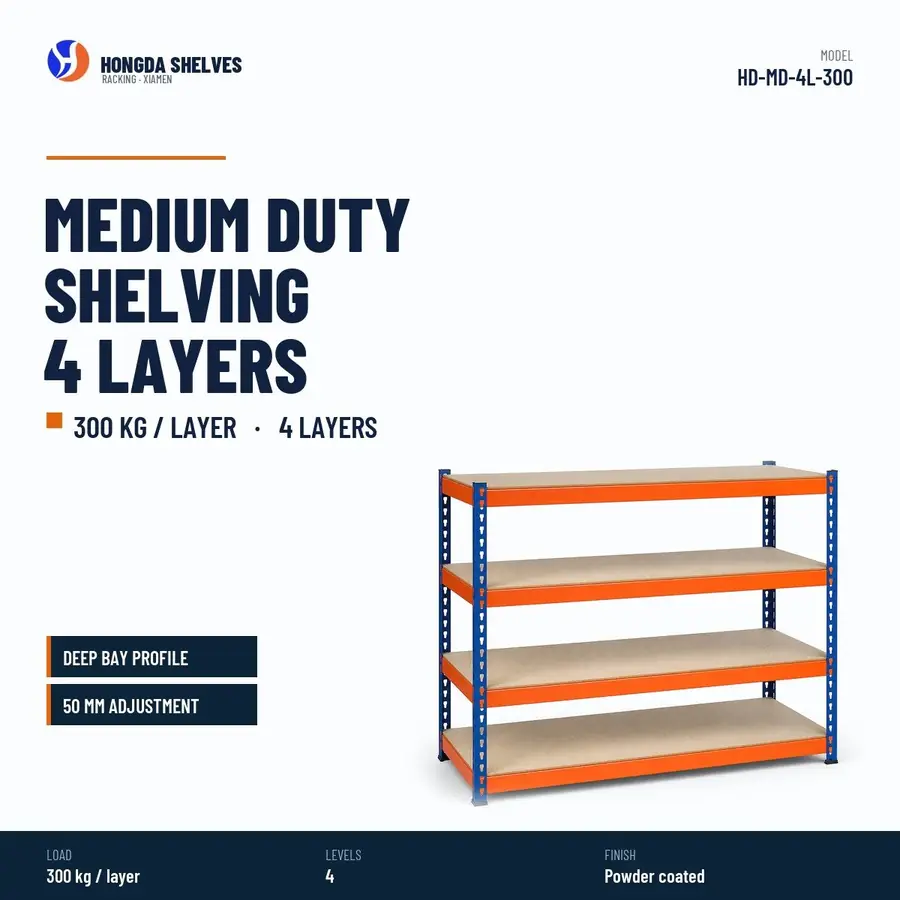

FIG. 01 — Model sheet, HD-MD-4L-300
Technical drawing and packing list are issued with the quotation. Ratings shown are typical for this range — the approved drawing states the rating for your unit load.
Boltless Medium Duty Shelving, 4 Layers, 300 kg

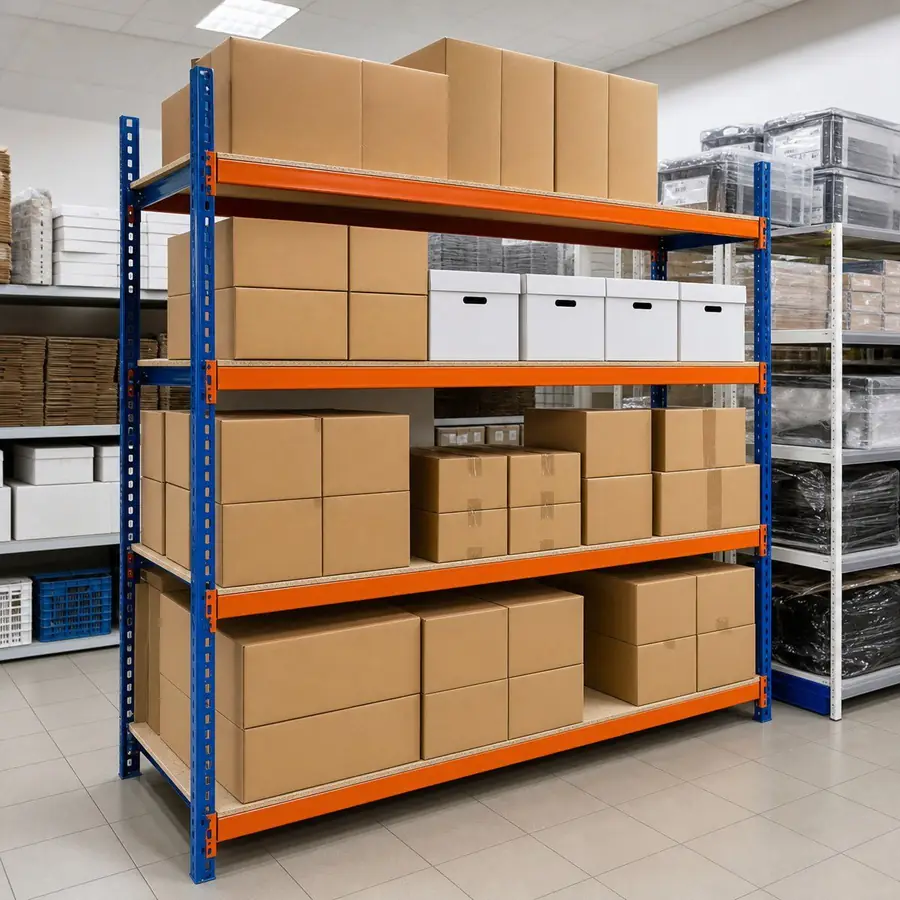

Medium duty steel shelving with four deep board levels rated 300 kg each. It is the workhorse of a backroom: cartons, archive boxes or spare parts sit directly on the shelf without a pallet underneath, and the 50 mm adjustment pitch lets the bay follow a changing stock mix. Reinforced beam ends stop shelf walk under load. Flat-packed for container loading, with drawings issued before production.
| Property | Value |
|---|---|
| Model | HD-MD-4L-300 |
| Load per layer | 300 kg / layer |
| Levels | 4 |
| Steel | Cold-rolled steel |
| Finish | Powder coated |
| Colour | Blue frame / orange beams |
| MOQ | 10 pieces |
| Quotation | Per order, on request |
Confirmed per order, not assumed
Cost is built from quantity, coating colour and packing, so no price is published on this page. The quotation states the specification, the packing and the terms that apply to your order.
- 10 pieces minimum
- Full container
- Mixed container
Built to your bay, not to ours
- Dimensions
- Bay width, depth and level spacing set from your drawing or a photo of the space.
- Load rating
- Upright and beam sections selected against the unit load you carry.
- Colour
- Powder-coat colour matched to a sample or RAL reference.
- Packaging
- Bundled for container loading, or palletised for local distribution.
- Documents
- Drawing, packing list and spec sheet issued with the quotation — none are downloadable before an order.
- Deeper bay than the light duty range
- Four board levels on a 50 mm adjustment pitch
- Reinforced beam ends to stop shelf walk
- Carries a mixed consignment in one bay
