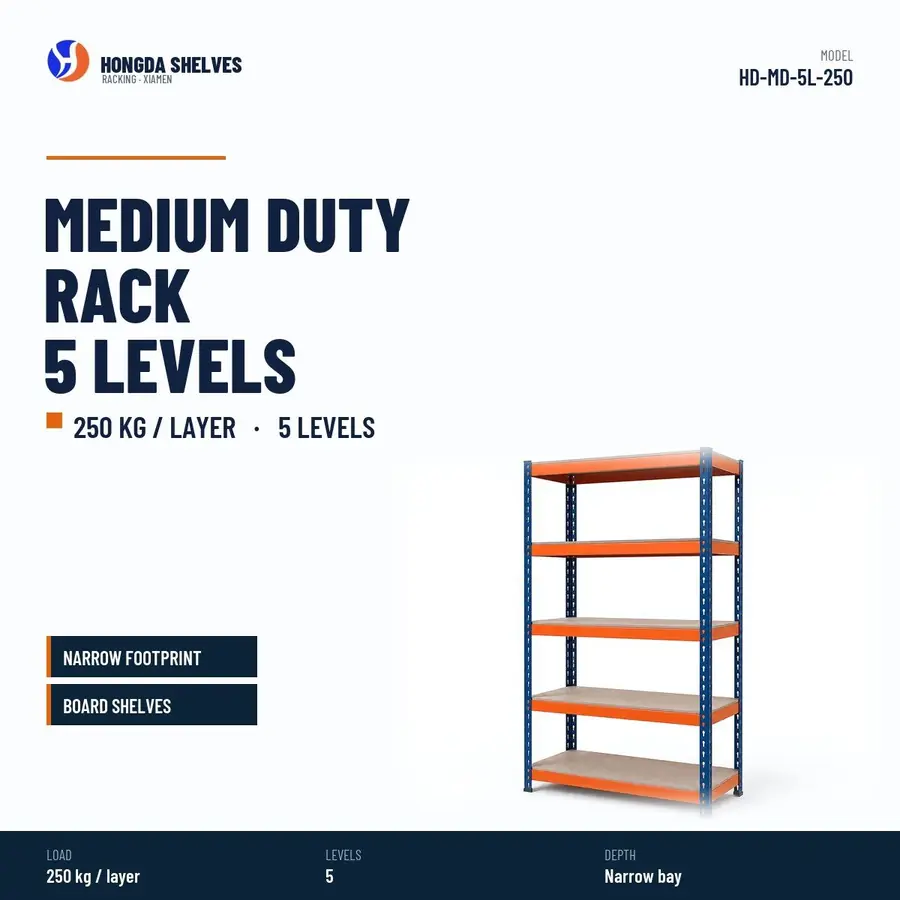

FIG. 01 — Model sheet, HD-MD-5L-250
Technical drawing and packing list are issued with the quotation. Ratings shown are typical for this range — the approved drawing states the rating for your unit load.
Five-Level Medium Duty Rack, 250 kg per Level
A tall, narrow medium duty rack at 250 kg per layer, for aisles where floor space is short but height is available. Five levels sit on a footprint barely wider than a pallet, and board shelves protect fragile cartons. Upright guards are available for busy aisles. The unit assembles without specialist labour and is supplied flat-packed, powder coated in blue, orange, grey or a custom RAL.
| Property | Value |
|---|---|
| Model | HD-MD-5L-250 |
| Load per layer | 250 kg / layer |
| Levels | 5 |
| Steel | Cold-rolled steel |
| Finish | Powder coated |
| Colour | Blue frame / orange beams |
| MOQ | 10 pieces |
| Quotation | Per order, on request |
Confirmed per order, not assumed
Cost is built from quantity, coating colour and packing, so no price is published on this page. The quotation states the specification, the packing and the terms that apply to your order.
- 10 pieces minimum
- Full container
- Mixed container
Built to your bay, not to ours
- Dimensions
- Bay width, depth and level spacing set from your drawing or a photo of the space.
- Load rating
- Upright and beam sections selected against the unit load you carry.

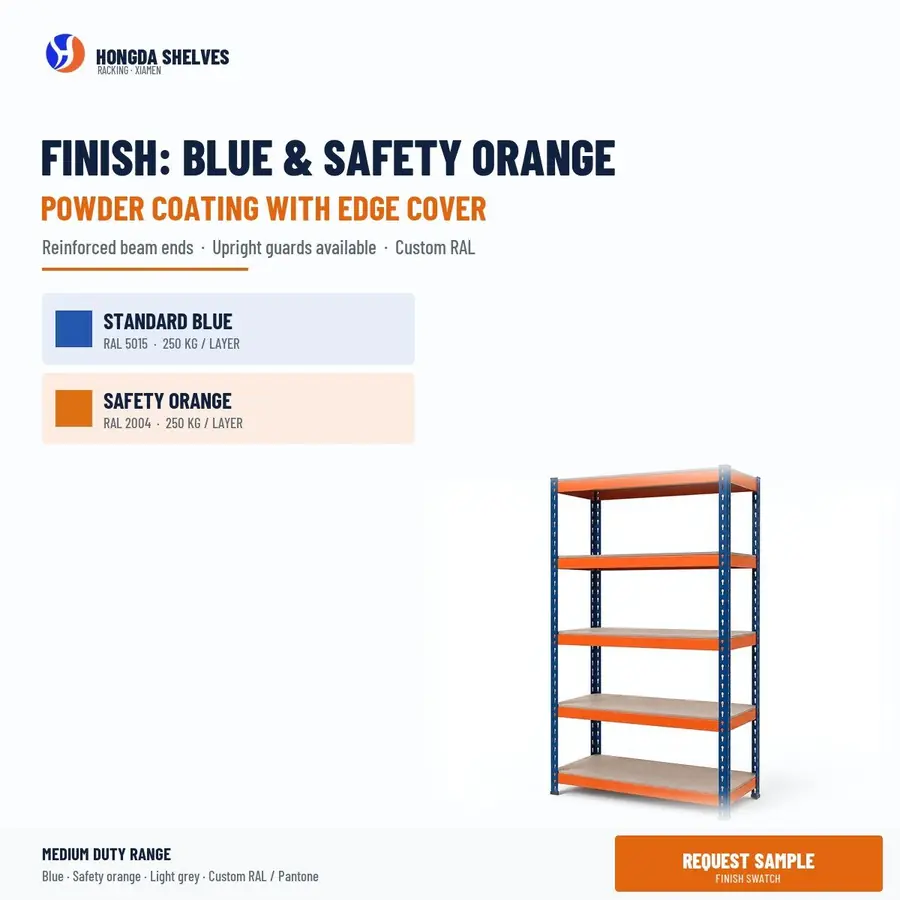

- Colour
- Powder-coat colour matched to a sample or RAL reference.
- Packaging
- Bundled for container loading, or palletised for local distribution.
- Documents
- Drawing, packing list and spec sheet issued with the quotation — none are downloadable before an order.
- Five levels in a narrow footprint
- Board shelves protect fragile cartons
- Upright guards available for aisles
- Assembles without specialist labour
