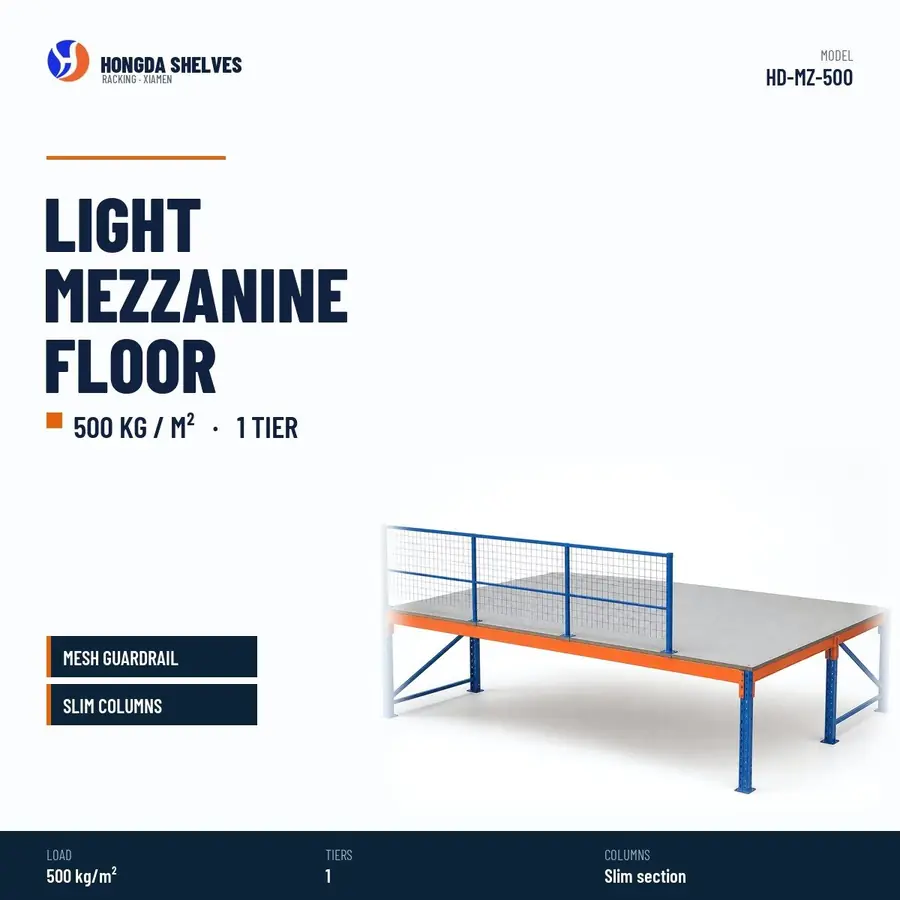

FIG. 01 — Model sheet, HD-MZ-500
Technical drawing and packing list are issued with the quotation. Ratings shown are typical for this range — the approved drawing states the rating for your unit load.
Light Mezzanine Floor, 500 kg/m2

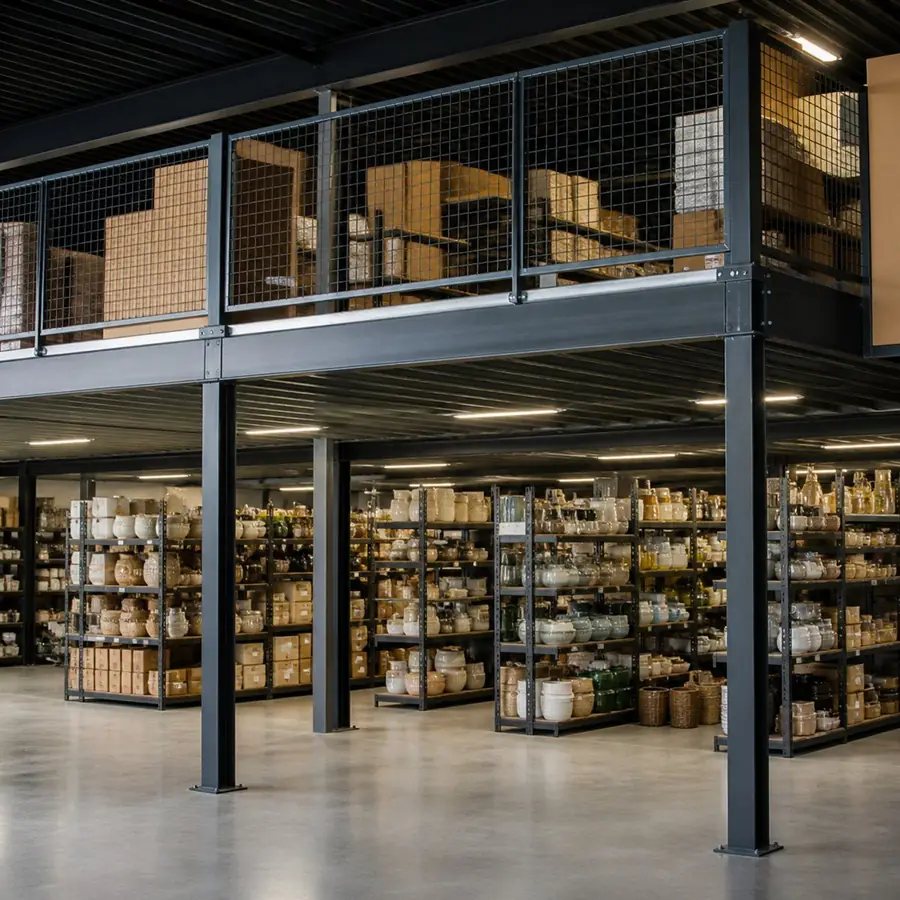

A single-tier light mezzanine floor at 500 kg per square metre, for picking stock above a ground-floor store. Sections are lighter than the standard mezzanine, so it suits upper floors with a lower slab rating. Mesh guardrail closes the open edges and slim columns protect aisle width below. The platform assembles over an existing racking run, which keeps the ground floor working during installation.
| Property | Value |
|---|---|
| Model | HD-MZ-500 |
| Load per layer | 500 kg/m2 |
| Levels | 1 tier |
| Steel | Cold-rolled steel |
| Finish | Powder coated |
| Colour | Blue frame / orange beams |
| MOQ | 50 m2 |
| Quotation | Per order, on request |
Confirmed per order, not assumed
Cost is built from quantity, coating colour and packing, so no price is published on this page. The quotation states the specification, the packing and the terms that apply to your order.
- 50 m2 minimum
- Full container
- Mixed container
Built to your bay, not to ours
- Dimensions
- Bay width, depth and level spacing set from your drawing or a photo of the space.
- Load rating
- Upright and beam sections selected against the unit load you carry.

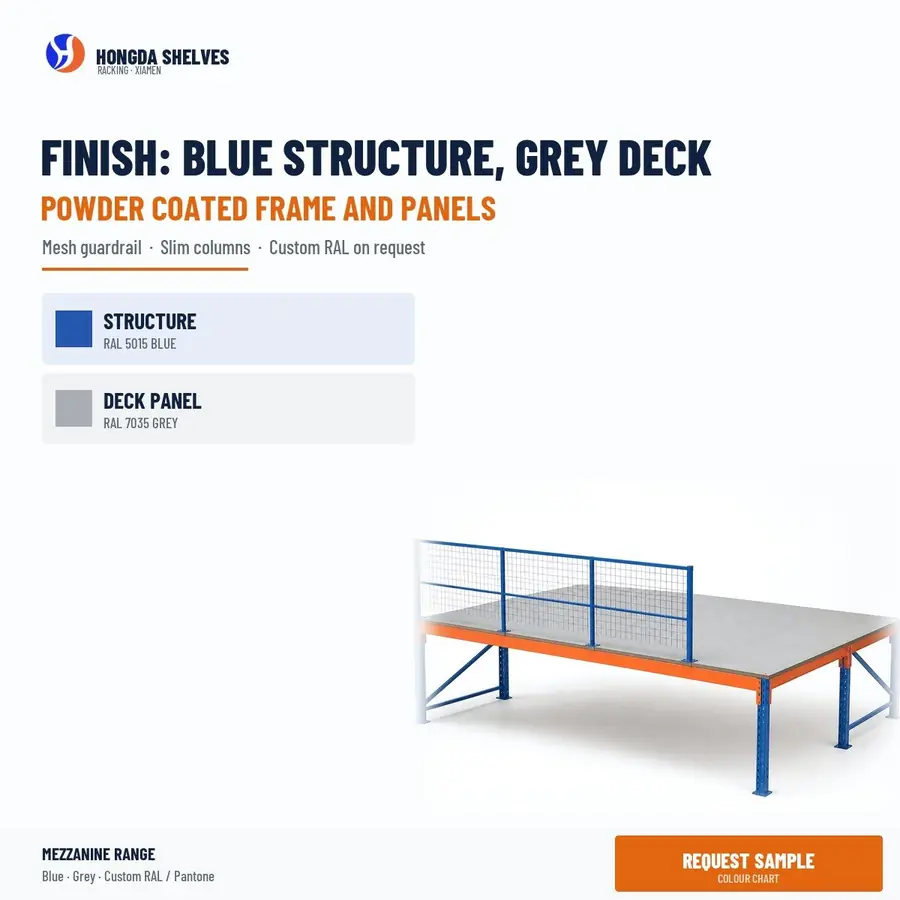

- Colour
- Powder-coat colour matched to a sample or RAL reference.
- Packaging
- Bundled for container loading, or palletised for local distribution.
- Documents
- Drawing, packing list and spec sheet issued with the quotation — none are downloadable before an order.
- 500 kg per square metre
- Mesh guardrail on open edges
- Slim columns to protect aisle width
- Assembles over an existing racking run
