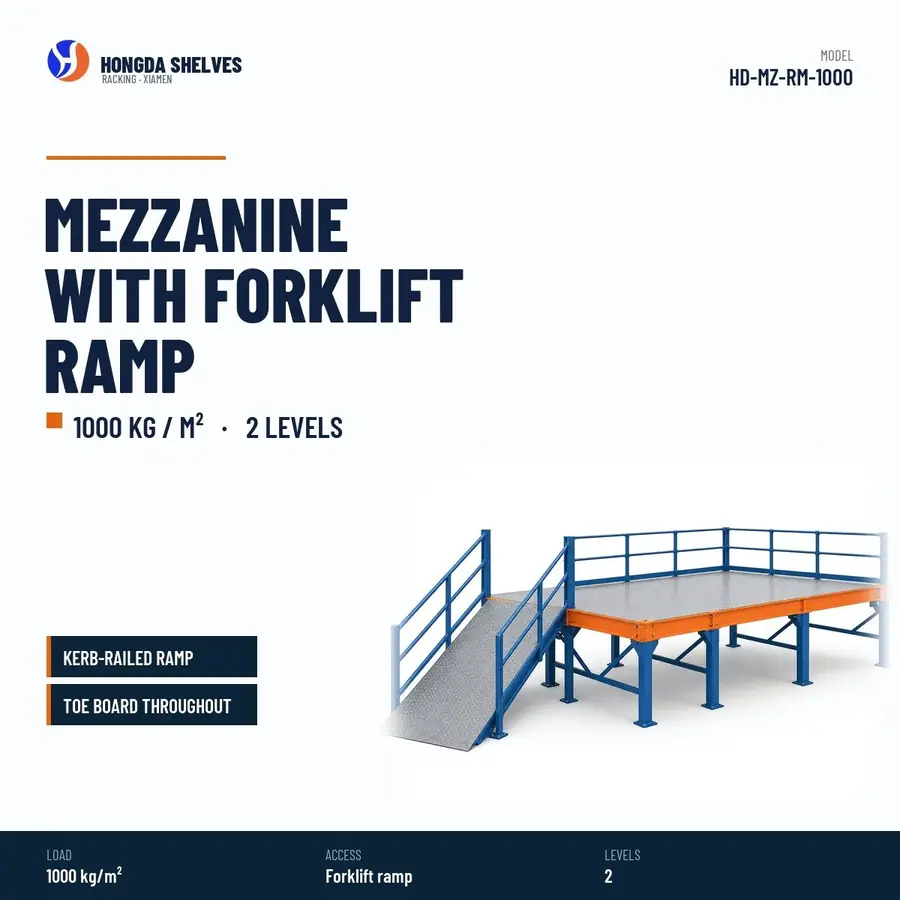

FIG. 01 — Model sheet, HD-MZ-RM-1000
Technical drawing and packing list are issued with the quotation. Ratings shown are typical for this range — the approved drawing states the rating for your unit load.
Mezzanine Platform with Forklift Ramp
A heavy mezzanine platform loaded by forklift rather than by hand, rated 1000 kg per square metre, with a ramp instead of a staircase. Kerb rails guide the truck on the ramp, heavy column sections are used at the landings, and guardrail with toe board runs the full perimeter. Specified where goods have to reach the upper level on a pallet. Ramp geometry is set from your truck dimensions.
| Property | Value |
|---|---|
| Model | HD-MZ-RM-1000 |
| Load per layer | 1000 kg/m2 |
| Levels | 2 levels |
| Steel | Cold-rolled steel |
| Finish | Powder coated |
| Colour | Blue frame / orange beams |
| MOQ | 80 m2 |
| Quotation | Per order, on request |
Confirmed per order, not assumed
Cost is built from quantity, coating colour and packing, so no price is published on this page. The quotation states the specification, the packing and the terms that apply to your order.
- 80 m2 minimum
- Full container
- Mixed container
Built to your bay, not to ours
- Dimensions
- Bay width, depth and level spacing set from your drawing or a photo of the space.
- Load rating
- Upright and beam sections selected against the unit load you carry.
- Colour
- Powder-coat colour matched to a sample or RAL reference.
- Packaging
- Bundled for container loading, or palletised for local distribution.
- Documents
- Drawing, packing list and spec sheet issued with the quotation — none are downloadable before an order.
- 1000 kg per square metre for pallet loads

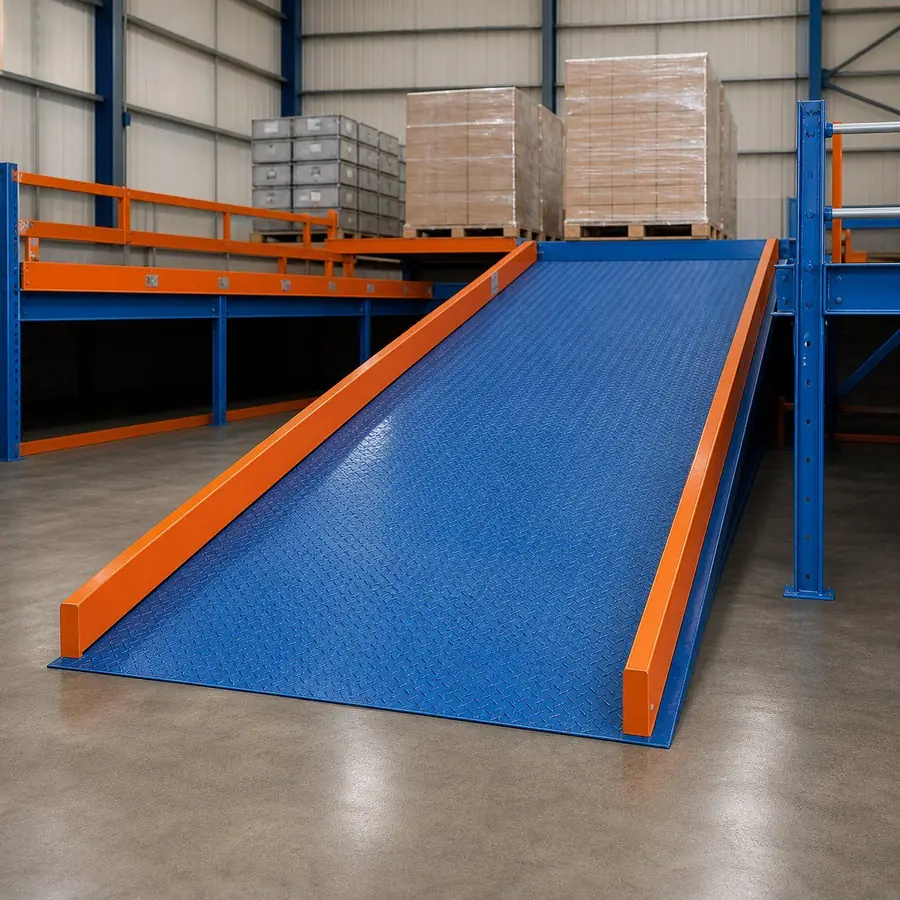

- Forklift ramp with kerb rails
- Heavy column sections at ramp landings
- Guardrail and toe board throughout
