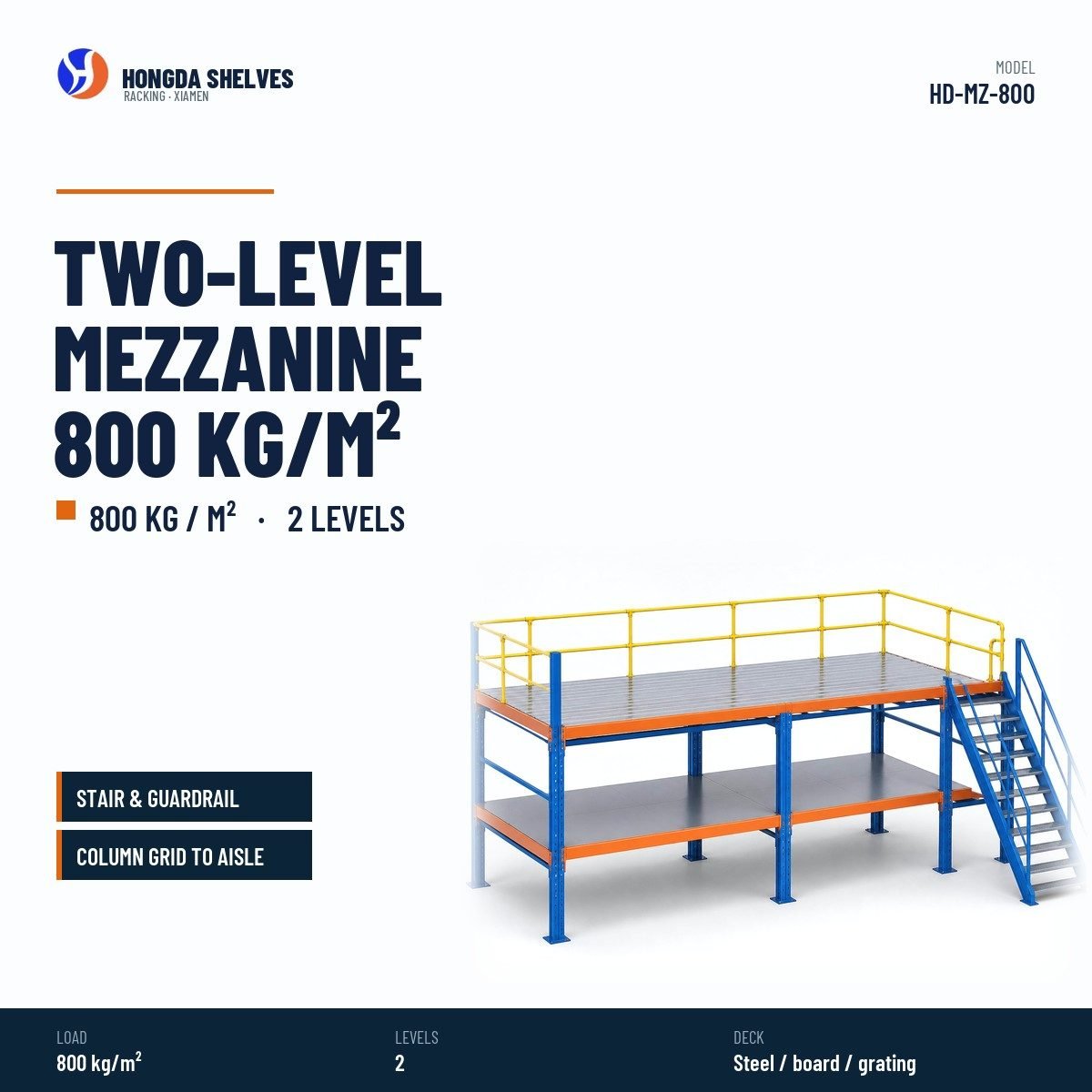

FIG. 01 — Model sheet, HD-MZ-800
Technical drawing and packing list are issued with the quotation. Ratings shown are typical for this range — the approved drawing states the rating for your unit load.
Two-Level Mezzanine Platform, 800 kg/m2
A two-level mezzanine platform rated 800 kg per square metre, adding a second floor over existing storage. Columns land on a grid that keeps the forklift aisles below clear, and the deck is rated per square metre rather than per pallet, so mixed loads are easier to plan. Staircase and guardrail are included, with deck in steel panel, board or grating. Column grid is set to your aisle layout.
| Property | Value |
|---|---|
| Model | HD-MZ-800 |
| Load per layer | 800 kg/m2 |
| Levels | 2 levels |
| Steel | Cold-rolled steel |
| Finish | Powder coated |
| Colour | Blue frame / orange beams |
| MOQ | 50 m2 |
| Quotation | Per order, on request |
Confirmed per order, not assumed
Cost is built from quantity, coating colour and packing, so no price is published on this page. The quotation states the specification, the packing and the terms that apply to your order.
- 50 m2 minimum
- Full container
- Mixed container
Built to your bay, not to ours
- Dimensions
- Bay width, depth and level spacing set from your drawing or a photo of the space.
- Load rating
- Upright and beam sections selected against the unit load you carry.
- Colour
- Powder-coat colour matched to a sample or RAL reference.
- Packaging
- Bundled for container loading, or palletised for local distribution.
- Documents
- Drawing, packing list and spec sheet issued with the quotation — none are downloadable before an order.
- Rated at 800 kg per square metre
- Staircase and guardrail included
- Column grid set to your aisle layout
- Deck in steel, board or grating
