FIG. 01 — Model sheet, HD-PR-SB
Technical drawing and packing list are issued with the quotation. Ratings shown are typical for this range — the approved drawing states the rating for your unit load.
Pallet Racking Step Beam Pair

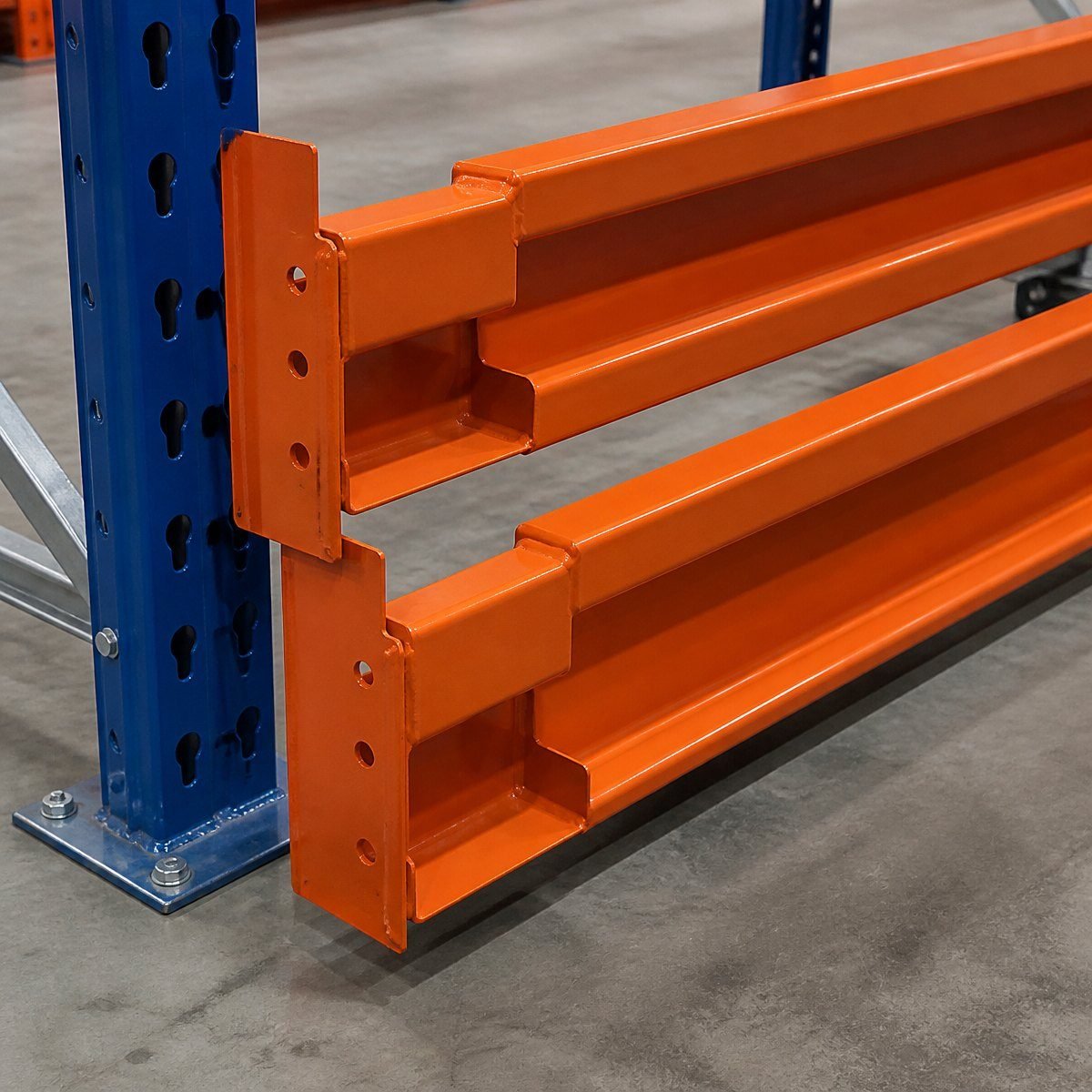

Pallet racking step beams sold as a matched pair, with end plates welded on and safety pins fitted. The step profile locates the deck panels and adds stiffness along the beam, which matters on long spans. Lengths are cut to your bay width and the coating is applied after the end-plate weld, with the pin bores masked. Supplied with the safety pins and a packing list per container.
| Property | Value |
|---|---|
| Model | HD-PR-SB |
| Load per layer | Matched to the bay |
| Levels | 1 level |
| Steel | Cold-rolled steel |
| Finish | Powder coated |
| Colour | Blue frame / orange beams |
| MOQ | 20 pairs |
| Quotation | Per order, on request |
Confirmed per order, not assumed
Cost is built from quantity, coating colour and packing, so no price is published on this page. The quotation states the specification, the packing and the terms that apply to your order.
- 20 pairs minimum
- Full container
- Mixed container
Built to your bay, not to ours
- Dimensions
- Bay width, depth and level spacing set from your drawing or a photo of the space.
- Load rating
- Upright and beam sections selected against the unit load you carry.
- Colour
- Powder-coat colour matched to a sample or RAL reference.
- Packaging
- Bundled for container loading, or palletised for local distribution.
- Documents
- Drawing, packing list and spec sheet issued with the quotation — none are downloadable before an order.
- Sold as a matched pair
- Welded end plates with safety pins
- Step profile locates the deck panels
- Lengths cut to your bay width
