FIG. 01 — Model sheet, HD-PR-UF
Technical drawing and packing list are issued with the quotation. Ratings shown are typical for this range — the approved drawing states the rating for your unit load.
Pallet Racking Upright Frame

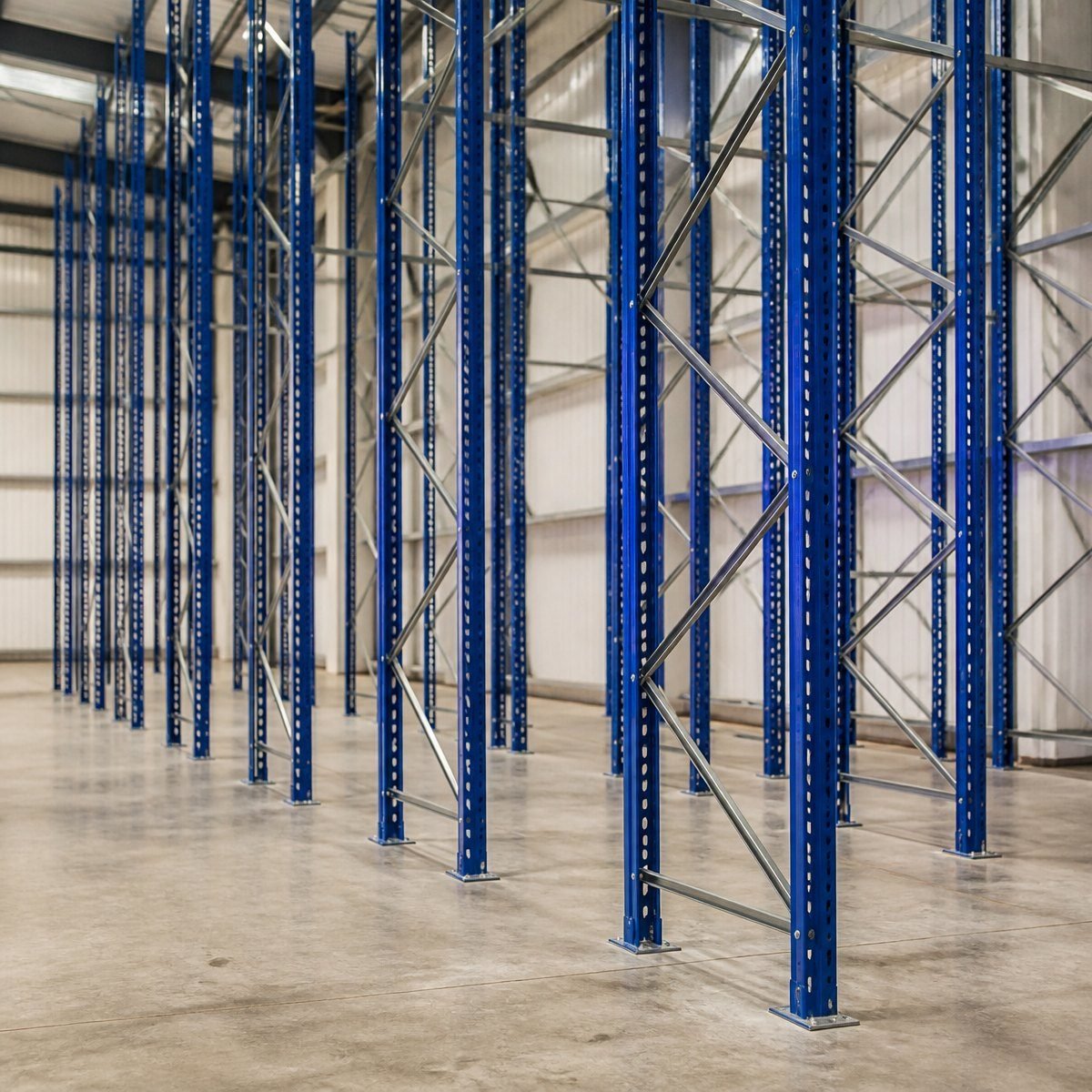

Replacement or extension upright frames for an existing pallet racking run, supplied to the same slot pitch so new frames line up with what is already installed. Horizontal and diagonal bracing is welded in a jig, base plates are predrilled for floor anchors, and the frame is powder coated after welding. Delivered flat-packed with fixings. Load capacity is stated with the beam set it is paired to.
| Property | Value |
|---|---|
| Model | HD-PR-UF |
| Load per layer | Rated with the beam set |
| Levels | 3 |
| Steel | Cold-rolled steel |
| Finish | Powder coated |
| Colour | Blue frame / orange beams |
| MOQ | 10 frames |
| Quotation | Per order, on request |
Confirmed per order, not assumed
Cost is built from quantity, coating colour and packing, so no price is published on this page. The quotation states the specification, the packing and the terms that apply to your order.
- 10 frames minimum
- Full container
- Mixed container
Built to your bay, not to ours
- Dimensions
- Bay width, depth and level spacing set from your drawing or a photo of the space.
- Load rating
- Upright and beam sections selected against the unit load you carry.
- Colour
- Powder-coat colour matched to a sample or RAL reference.
- Packaging
- Bundled for container loading, or palletised for local distribution.
- Documents
- Drawing, packing list and spec sheet issued with the quotation — none are downloadable before an order.
- Slot pitch matched to the existing run
- Horizontal and diagonal bracing welded in jig
- Base plates predrilled for floor anchors
- Supplied flat-packed with fixings
