FIG. 01 — Model sheet, HD-PR-SEL-2000
Technical drawing and packing list are issued with the quotation. Ratings shown are typical for this range — the approved drawing states the rating for your unit load.
Selective Pallet Racking Bay, 2000 kg per Level

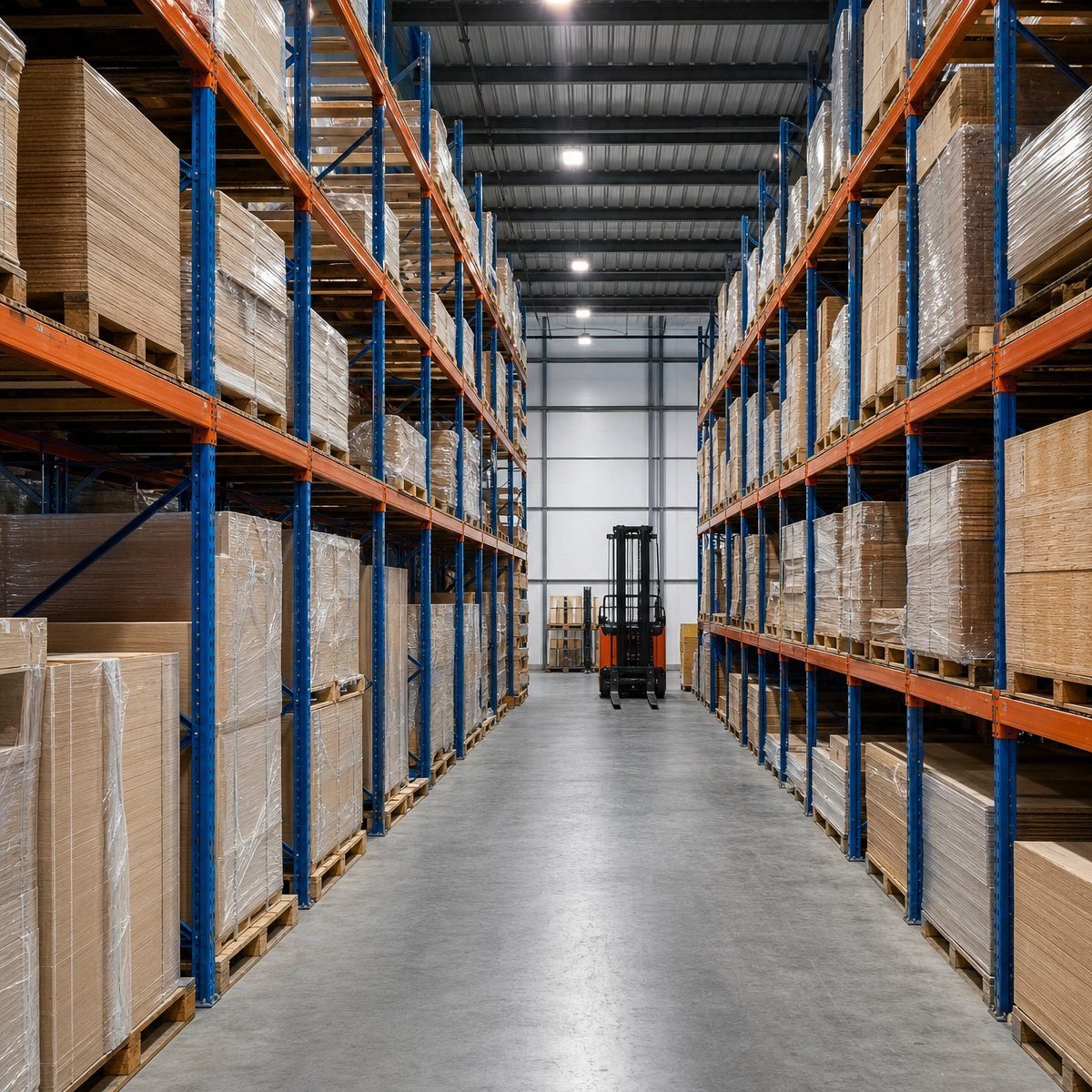

The standard selective pallet racking bay: two upright frames and three beam levels rated 2000 kg each, set out from your pallet size and lift height. Every pallet position is directly accessible, so selectivity stays high where SKU count is high. Upright frames arrive with base plates for floor anchors, and the layout is checked against your aisle width before the drawing is approved. Quoted per bay.
| Property | Value |
|---|---|
| Model | HD-PR-SEL-2000 |
| Load per layer | 2000 kg / level |
| Levels | 3 |
| Steel | Cold-rolled steel |
| Finish | Powder coated |

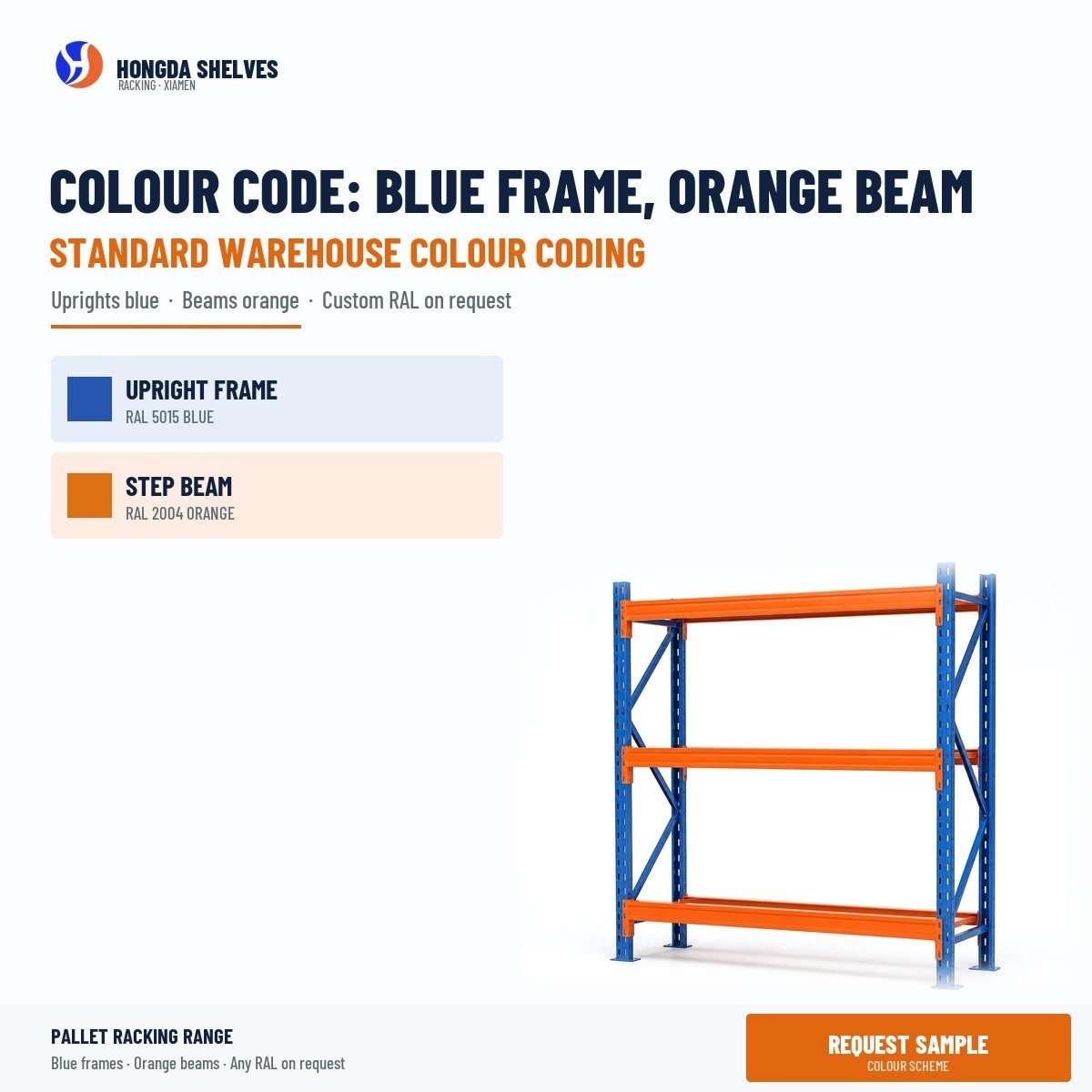

| Colour | Blue frame / orange beams |
| MOQ | 5 bays |
| Quotation | Per order, on request |
Confirmed per order, not assumed
Cost is built from quantity, coating colour and packing, so no price is published on this page. The quotation states the specification, the packing and the terms that apply to your order.
- 5 bays minimum
- Full container
- Mixed container
Built to your bay, not to ours
- Dimensions
- Bay width, depth and level spacing set from your drawing or a photo of the space.
- Load rating
- Upright and beam sections selected against the unit load you carry.
- Colour
- Powder-coat colour matched to a sample or RAL reference.
- Packaging

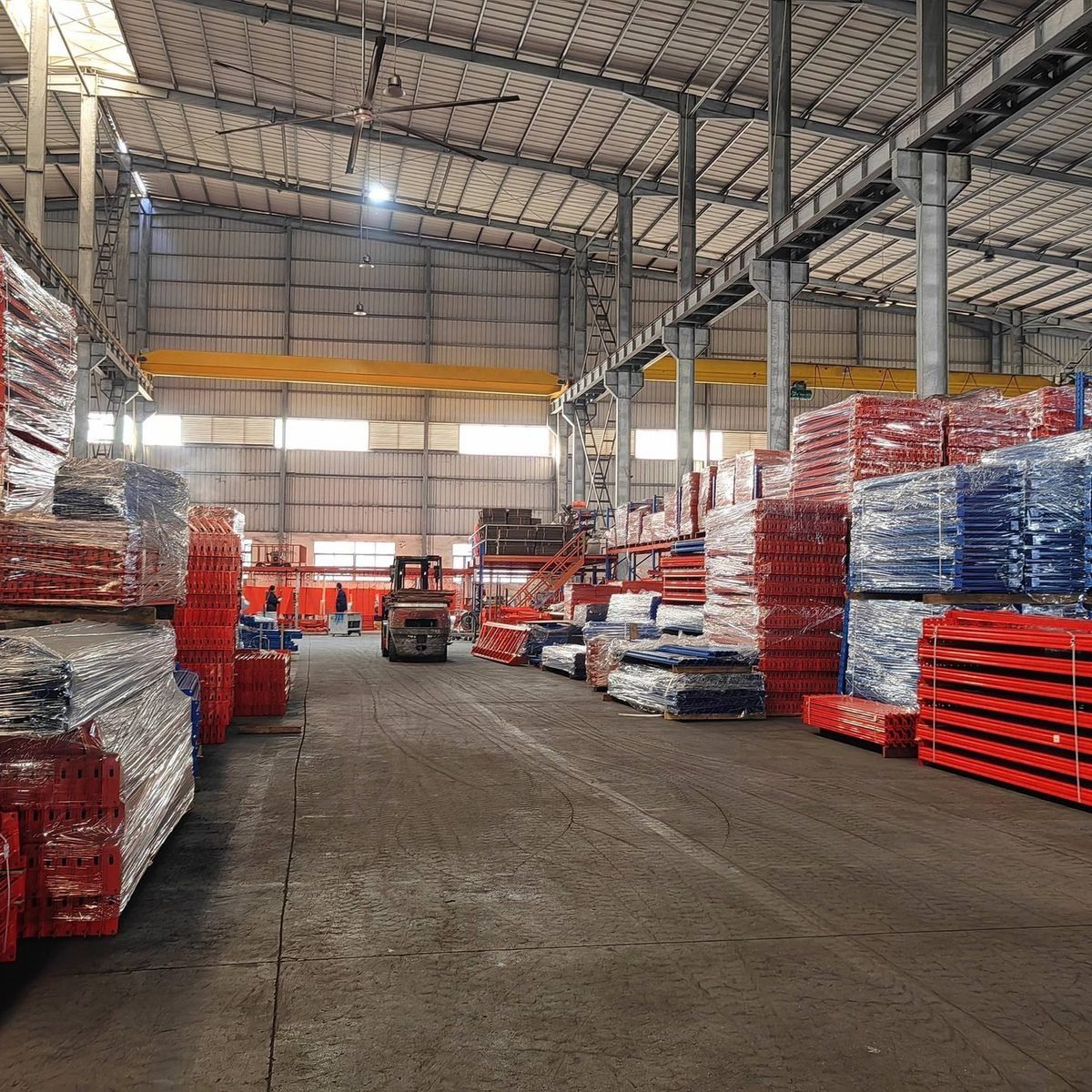

- Bundled for container loading, or palletised for local distribution.
- Documents
- Drawing, packing list and spec sheet issued with the quotation — none are downloadable before an order.
- Direct access to every pallet position
- Beam levels set to your lift height
- Upright frames supplied with base plates
- Layout checked against your aisle width
