High-Density Shuttle Lane, 6 Pallets Deep

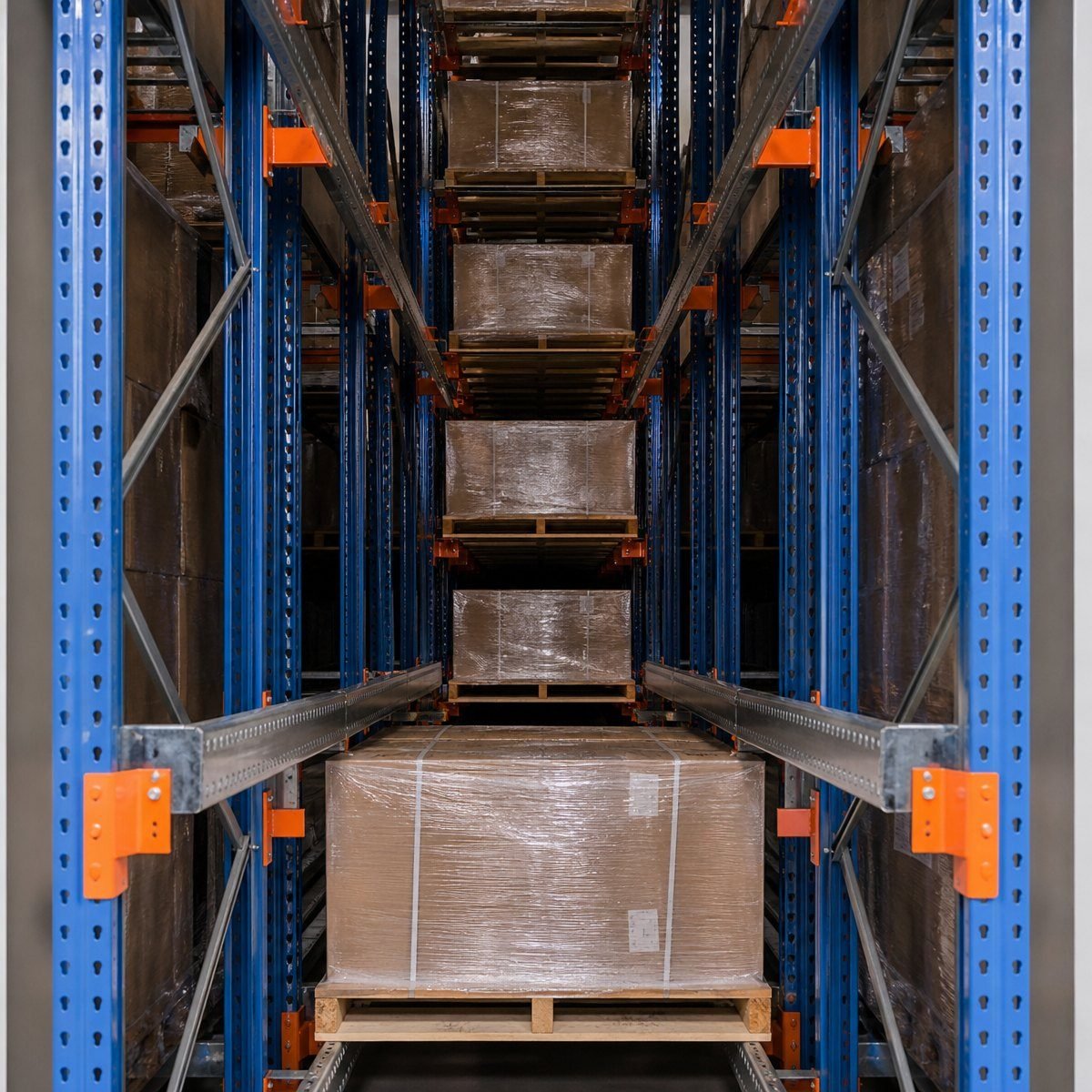

A six-deep high-density shuttle lane for single-SKU volume, working first in, last out. The deep lane trades selectivity for density, which suits seasonal stock and production buffer where the same pallet type repeats. Rails are levelled at installation and lane length is set to your building rather than to a standard module. Quoted as a lane set including the guide rails and controls.
| Property | Value |
|---|---|
| Model | HD-SR-6D |
| Load per layer | 1000 kg per pallet |
| Levels | 6 deep |
| Steel | Cold-rolled steel |
| Finish | Powder coated |
| Colour | Blue frame / orange beams |
| MOQ | 1 lane set |
| Quotation | Per order, on request |
Confirmed per order, not assumed
Cost is built from quantity, coating colour and packing, so no price is published on this page. The quotation states the specification, the packing and the terms that apply to your order.
- 1 lane set minimum
- Full container
- Mixed container
Built to your bay, not to ours
- Dimensions
- Bay width, depth and level spacing set from your drawing or a photo of the space.
- Load rating
- Upright and beam sections selected against the unit load you carry.
- Colour
- Powder-coat colour matched to a sample or RAL reference.
- Packaging
- Bundled for container loading, or palletised for local distribution.
- Documents
- Drawing, packing list and spec sheet issued with the quotation — none are downloadable before an order.
- Six pallets deep per lane
- First-in, last-out picking pattern
- Rails levelled at installation
- Lane length set to your building
