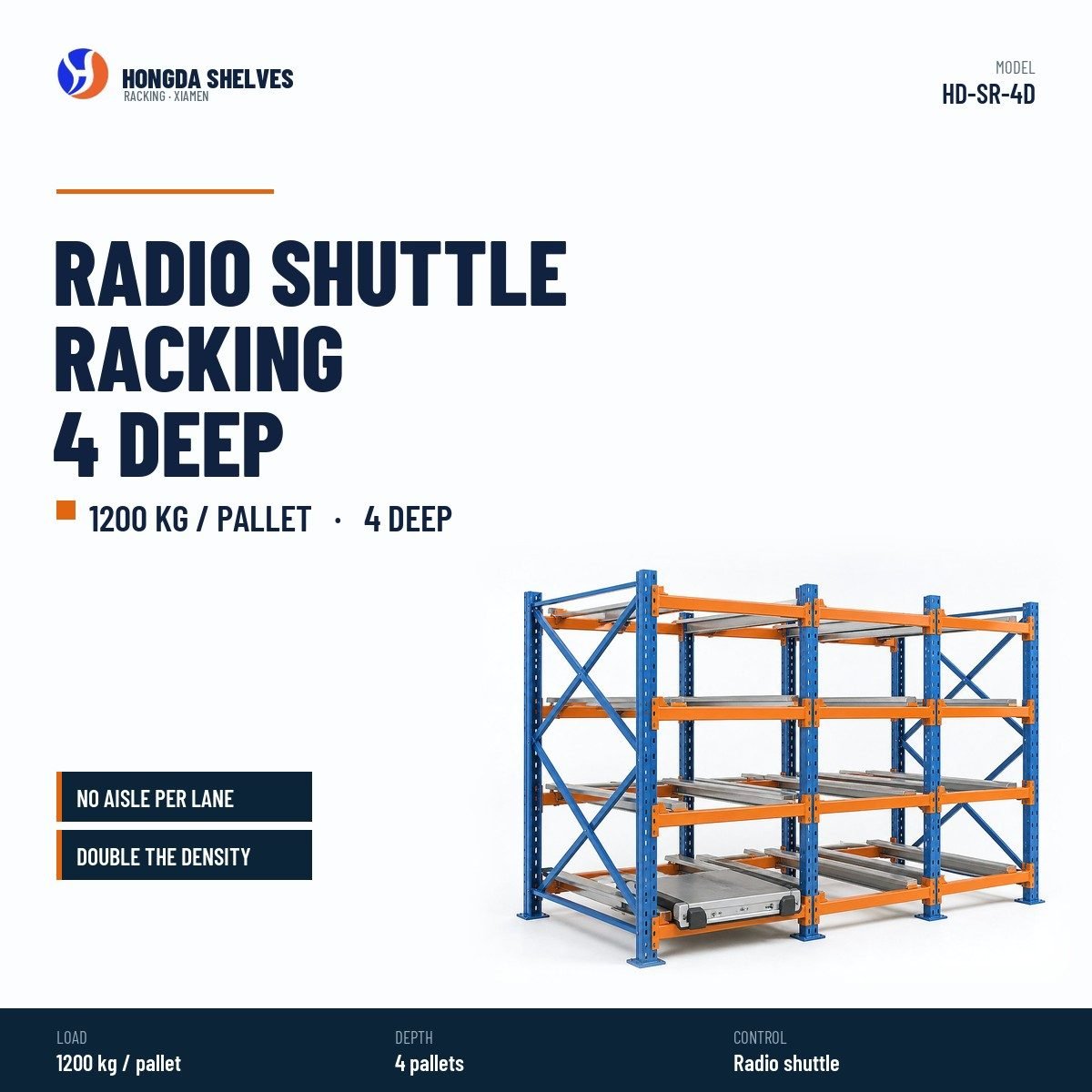

FIG. 01 — Model sheet, HD-SR-4D
Technical drawing and packing list are issued with the quotation. Ratings shown are typical for this range — the approved drawing states the rating for your unit load.
Radio Shuttle Racking, 4 Pallets Deep

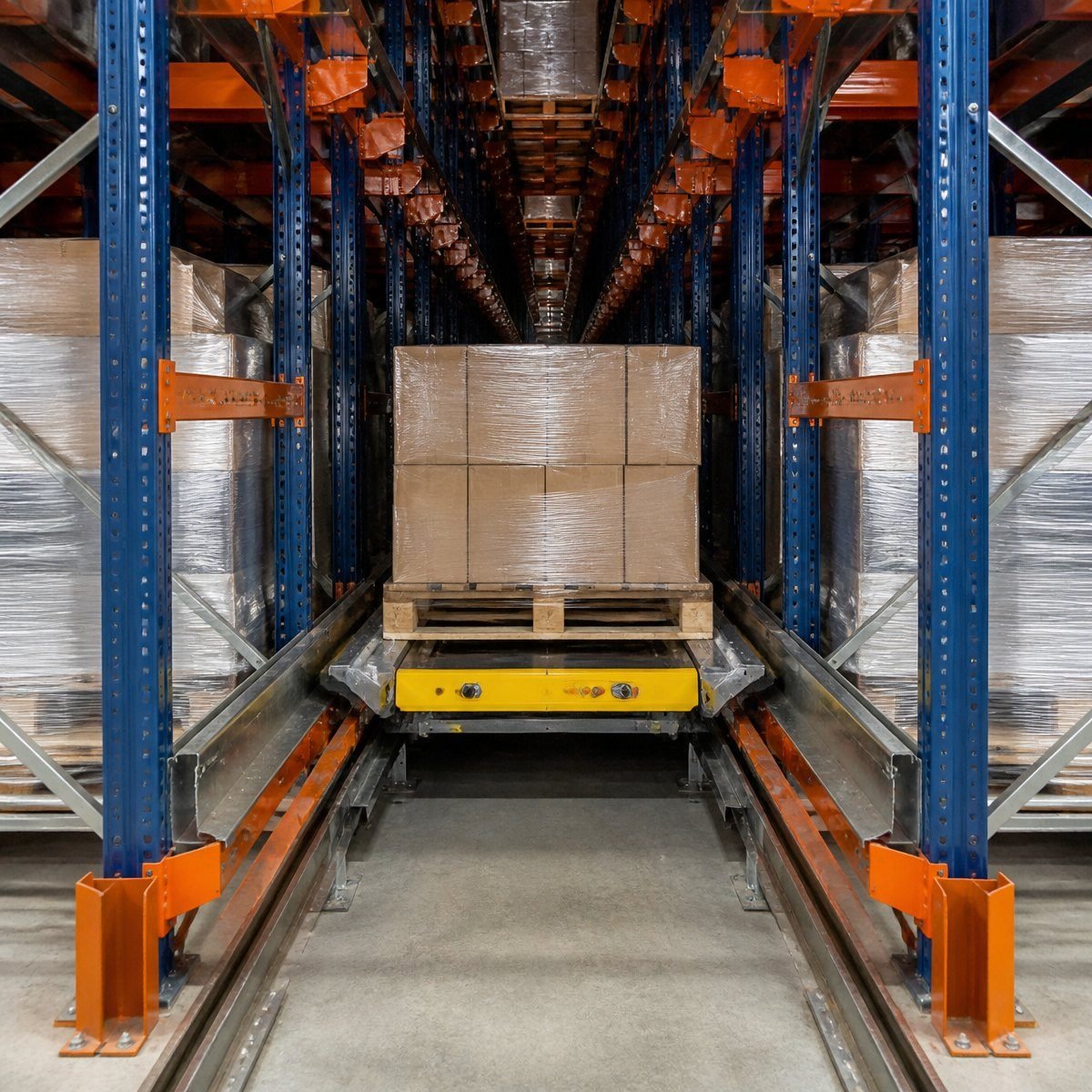

Radio shuttle racking that stores pallets four deep per lane, removing the aisle from the storage calculation. A shuttle cart carries each pallet into the channel on the lane rails, so the same floor area holds roughly twice what selective racking does. Suits steady, low-turnover SKUs where density matters more than instant access. Lane rails are levelled at installation and the cart is configured for radio or remote control.
| Property | Value |
|---|---|
| Model | HD-SR-4D |
| Load per layer | 1200 kg per pallet |
| Levels | 4 deep |
| Steel | Cold-rolled steel |
| Finish | Powder coated |
| Colour | Blue frame / orange beams |
| MOQ | 1 lane set |
| Quotation | Per order, on request |
Confirmed per order, not assumed
Cost is built from quantity, coating colour and packing, so no price is published on this page. The quotation states the specification, the packing and the terms that apply to your order.
- 1 lane set minimum
- Full container
- Mixed container
Built to your bay, not to ours
- Dimensions
- Bay width, depth and level spacing set from your drawing or a photo of the space.
- Load rating
- Upright and beam sections selected against the unit load you carry.

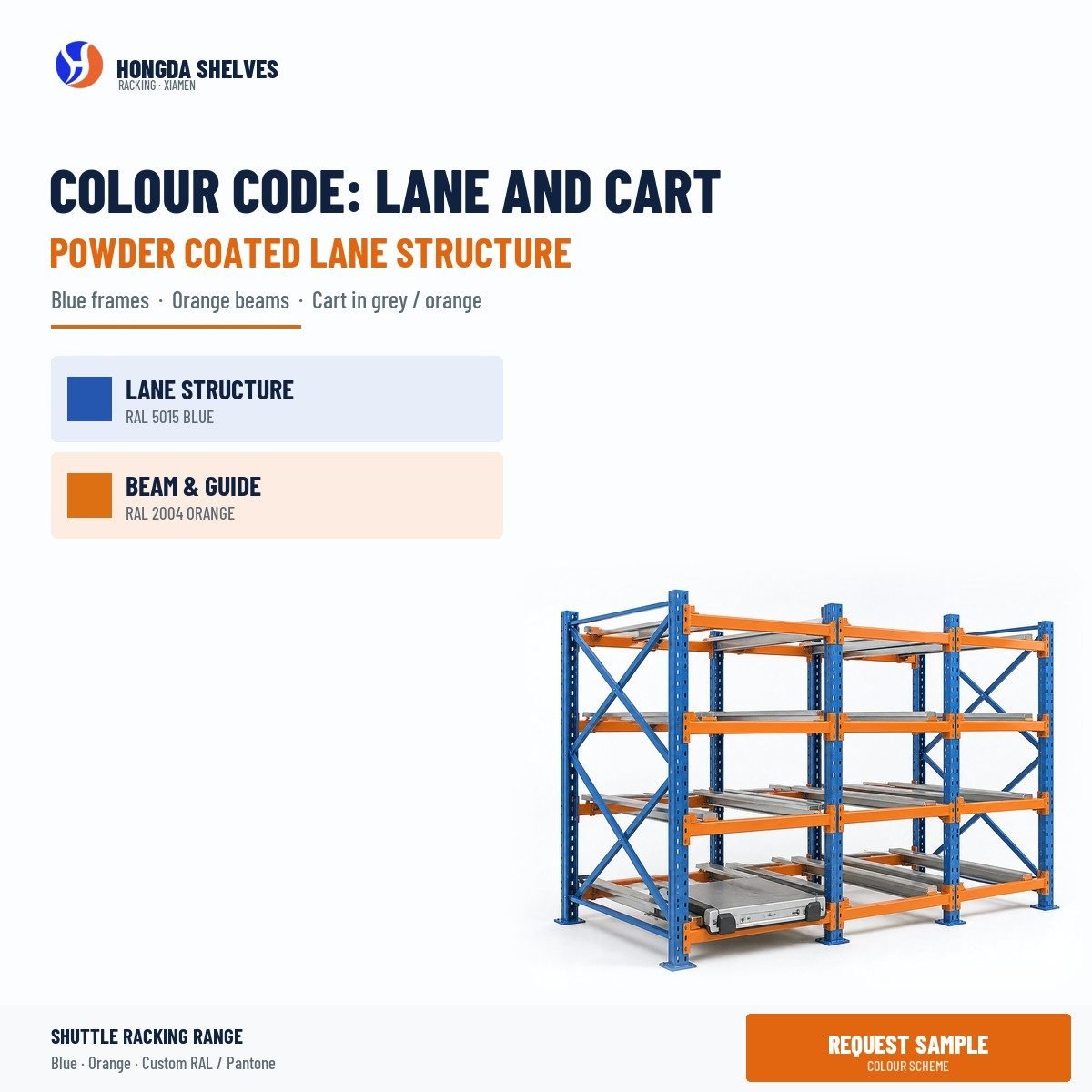

- Colour
- Powder-coat colour matched to a sample or RAL reference.

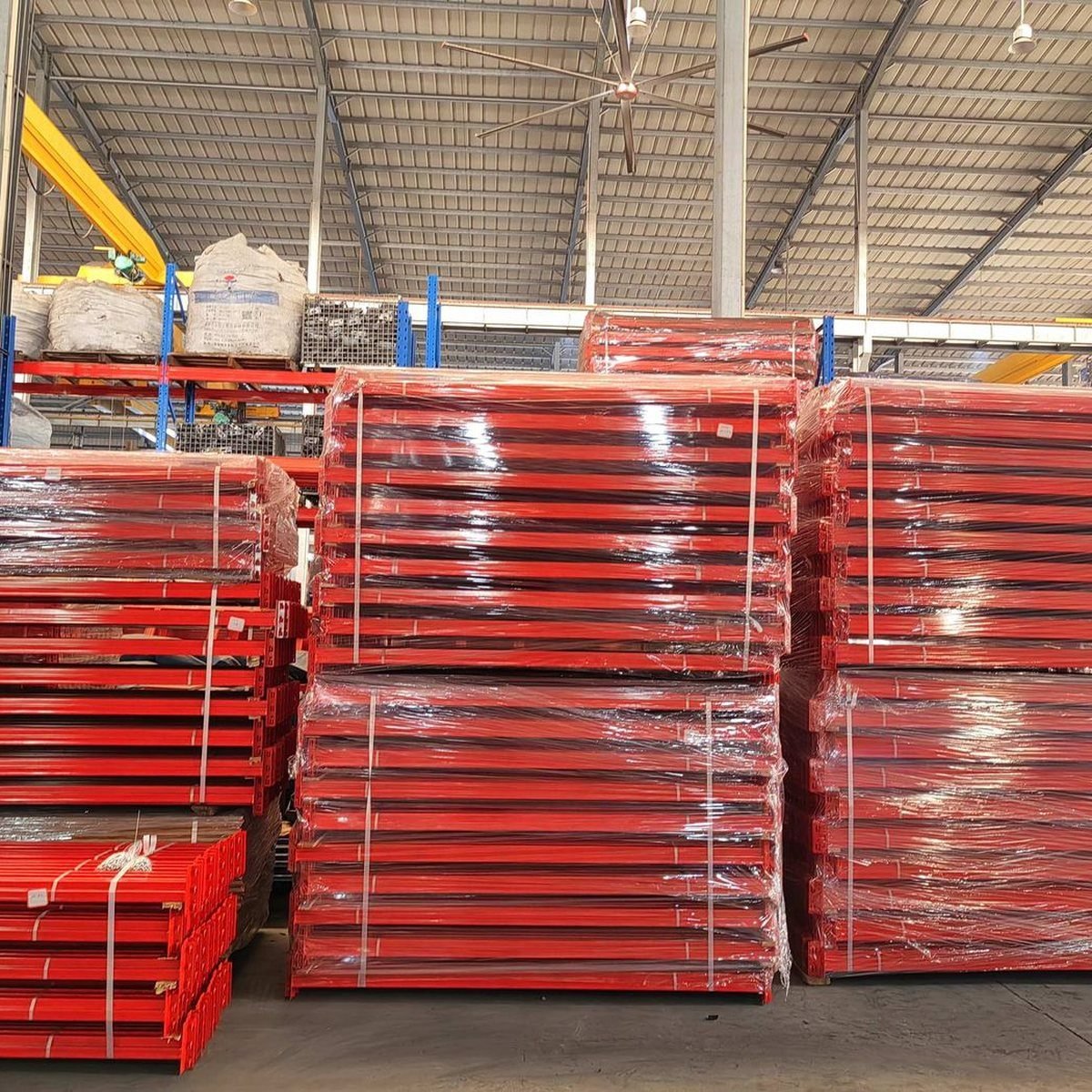

- Packaging
- Bundled for container loading, or palletised for local distribution.
- Documents
- Drawing, packing list and spec sheet issued with the quotation — none are downloadable before an order.
- Four pallets deep per lane
- Shuttle cart runs on the lane rails
- Fewer aisles for the same pallet count
- Suits steady, low-turnover SKUs
