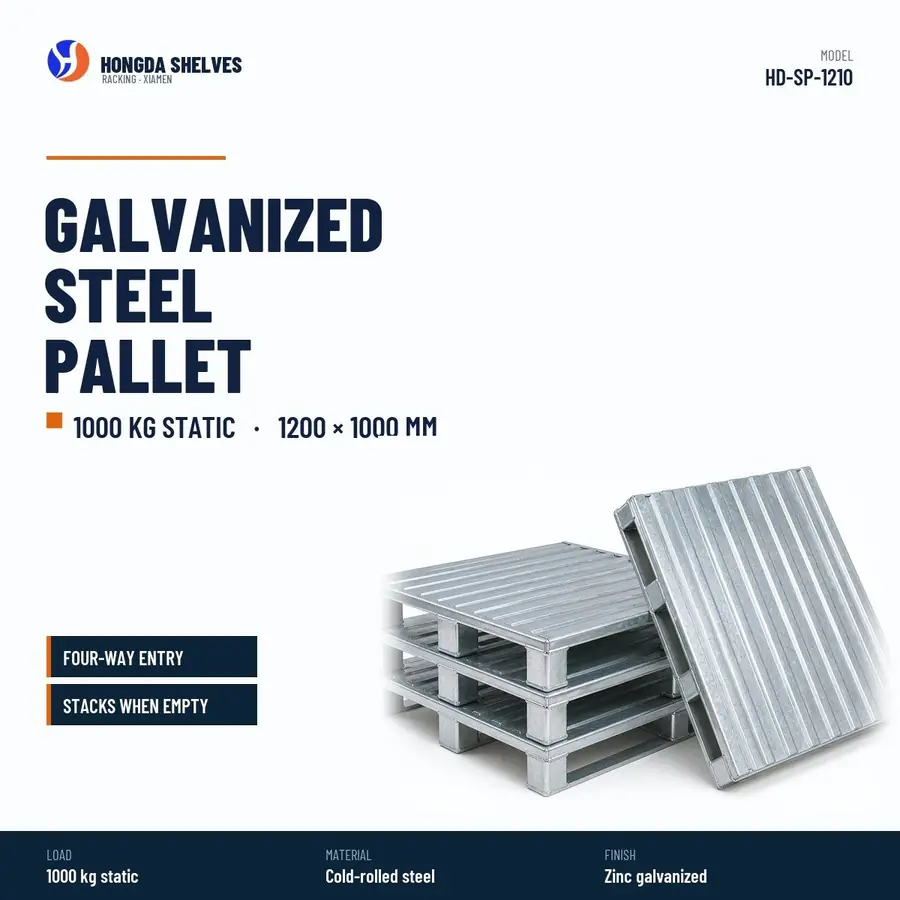

FIG. 01 — Model sheet, HD-SP-1210
Technical drawing and packing list are issued with the quotation. Ratings shown are typical for this range — the approved drawing states the rating for your unit load.
Galvanised Steel Pallet, 1200 x 1000 mm

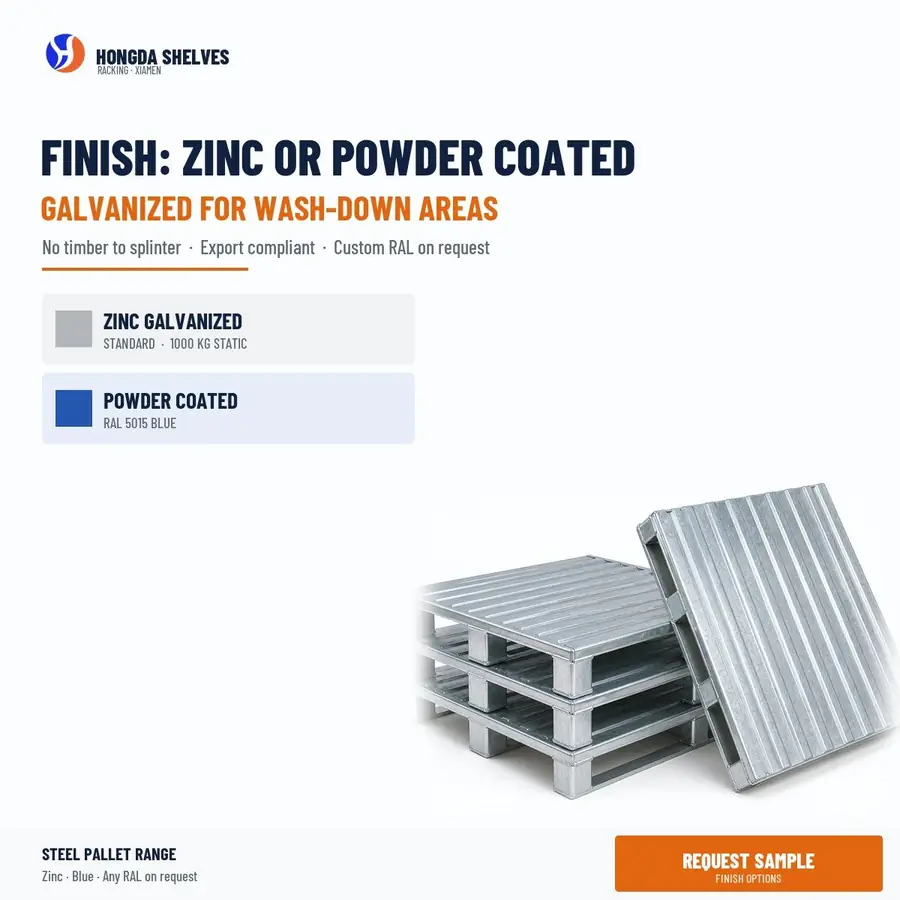

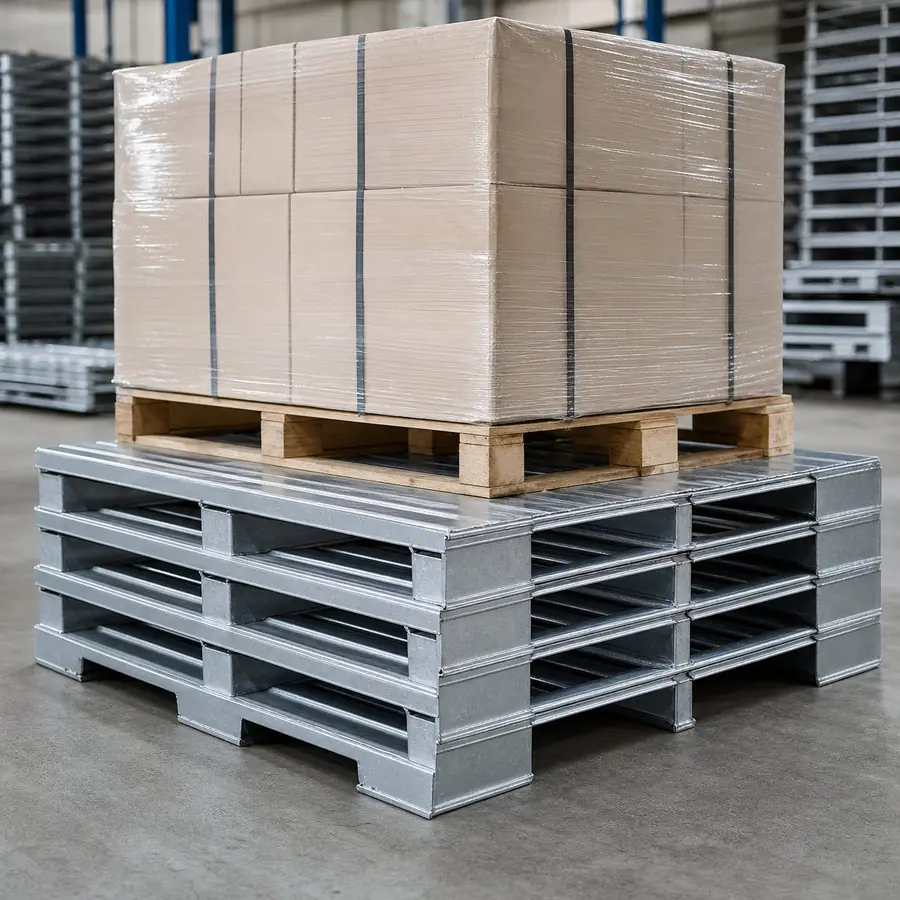

A galvanised steel pallet at 1200 by 1000 mm, rated 1000 kg static, for wash-down areas, racking where heat or chemicals are present, and export lanes where timber pallets are restricted. The pressed deck has no timber to splinter and four-way forklift entry, and empty units stack flat to save return freight. Also available powder coated in a RAL colour where a zinc finish is not wanted.
| Property | Value |
|---|---|
| Model | HD-SP-1210 |
| Load per layer | 1000 kg static |
| Levels | n/a |
| Steel | Cold-rolled steel |
| Finish | Galvanised |
| Colour | Zinc |
| MOQ | 50 pieces |
| Quotation | Per order, on request |
Confirmed per order, not assumed
Cost is built from quantity, coating colour and packing, so no price is published on this page. The quotation states the specification, the packing and the terms that apply to your order.
- 50 pieces minimum
- Full container
- Mixed container
Built to your bay, not to ours
- Dimensions
- Bay width, depth and level spacing set from your drawing or a photo of the space.
- Load rating
- Upright and beam sections selected against the unit load you carry.
- Colour
- Powder-coat colour matched to a sample or RAL reference.
- Packaging
- Bundled for container loading, or palletised for local distribution.
- Documents
- Drawing, packing list and spec sheet issued with the quotation — none are downloadable before an order.
- Pressed deck, no timber to splinter
- Galvanised against rust in damp stores
- Four-way forklift entry
- Stacks when empty
